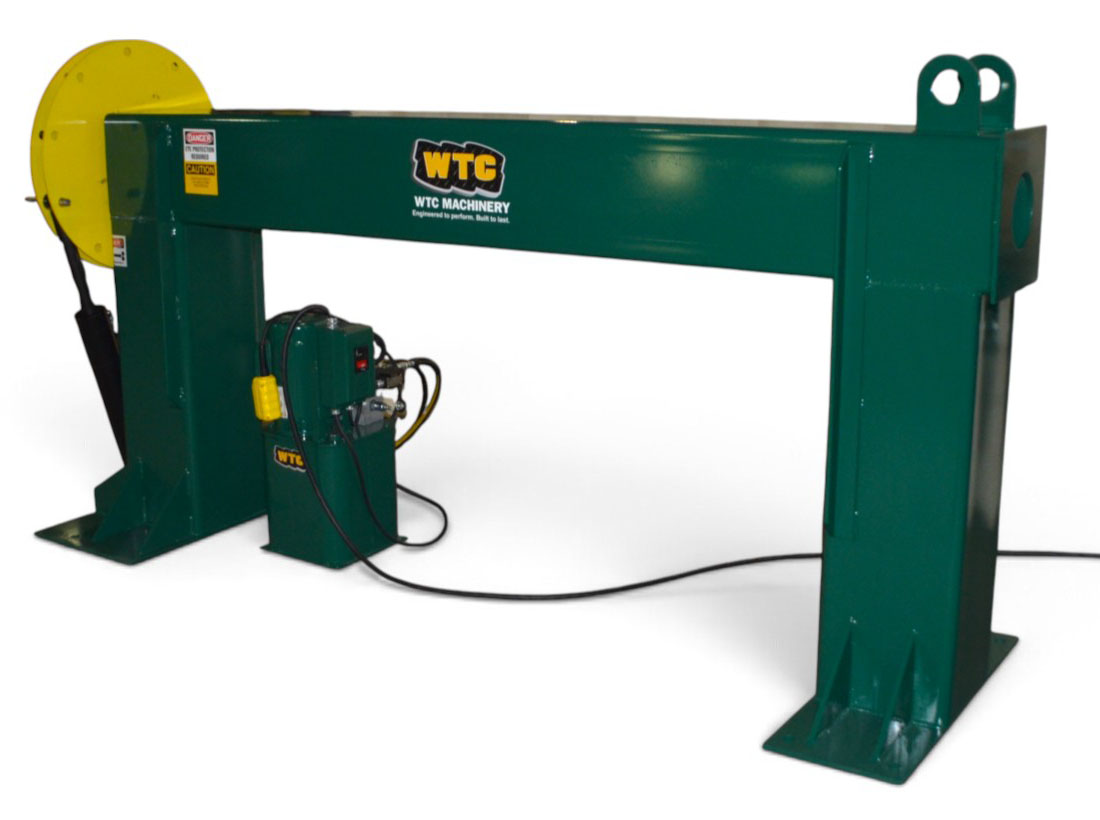

SCRS Hydraulic Cylinder Repair Bench

Request a Quote Today

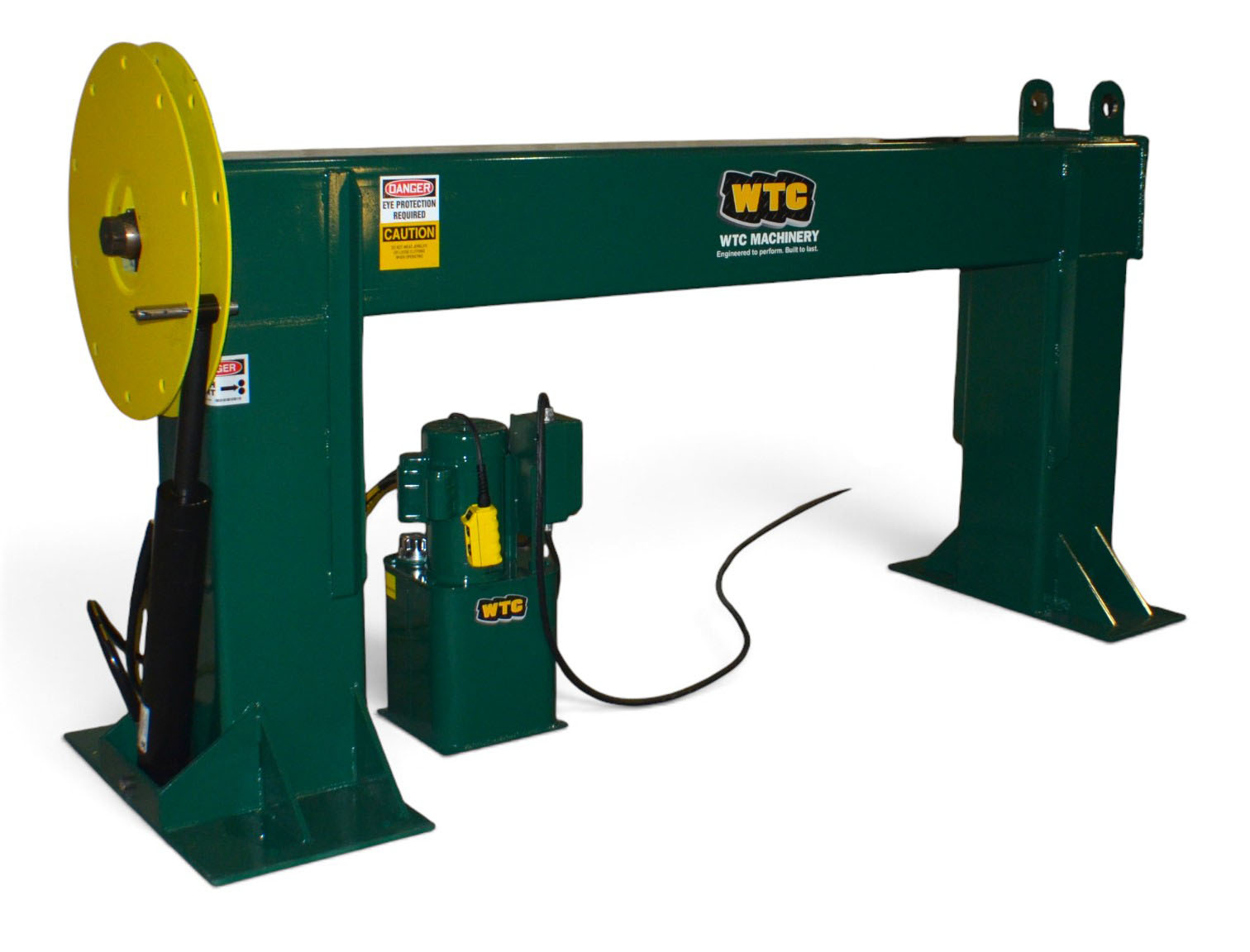

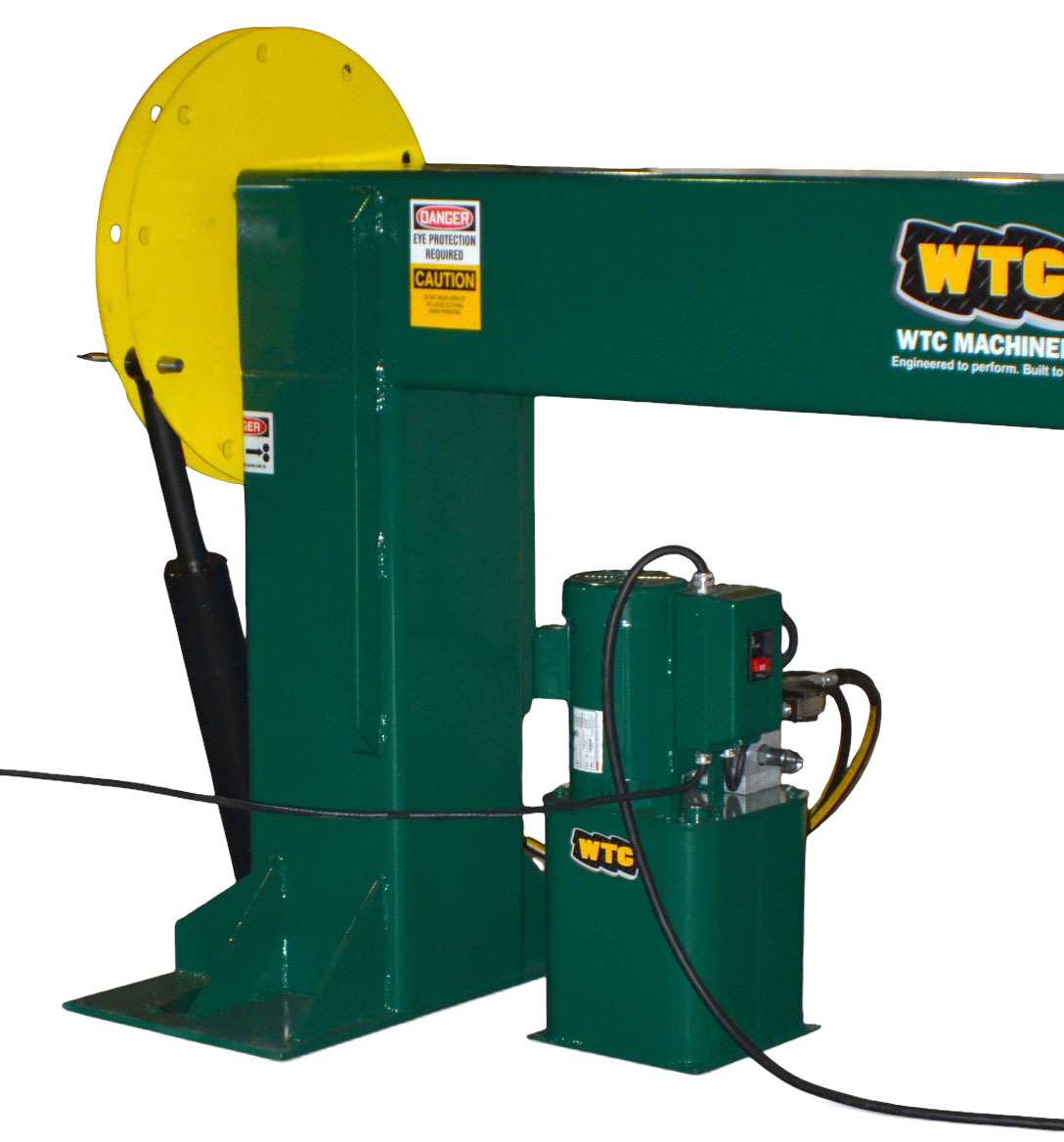

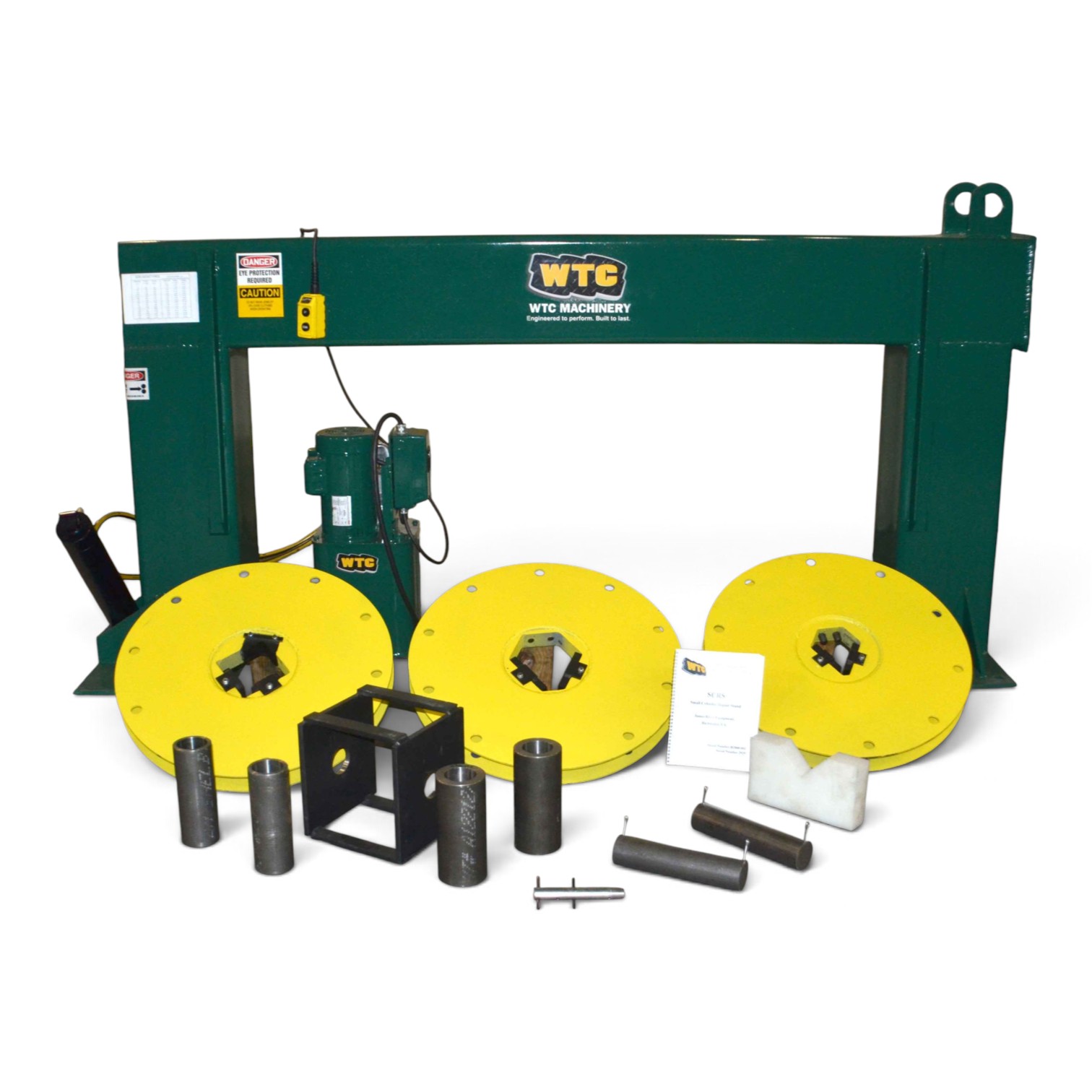

The SCRS Hydraulic Cylinder Repair Bench from WTC Machinery is a compact, heavy-duty solution engineered for the efficient repair of small and medium hydraulic cylinders. Designed for repair shops, equipment dealers, and maintenance facilities, the SCRS provides exceptional stability, high-torque performance, and space-saving efficiency without compromising capability.

Whether you're disassembling, servicing, or reassembling hydraulic cylinders, the SCRS delivers the power and precision needed to increase productivity while improving operator safety.

Key Features

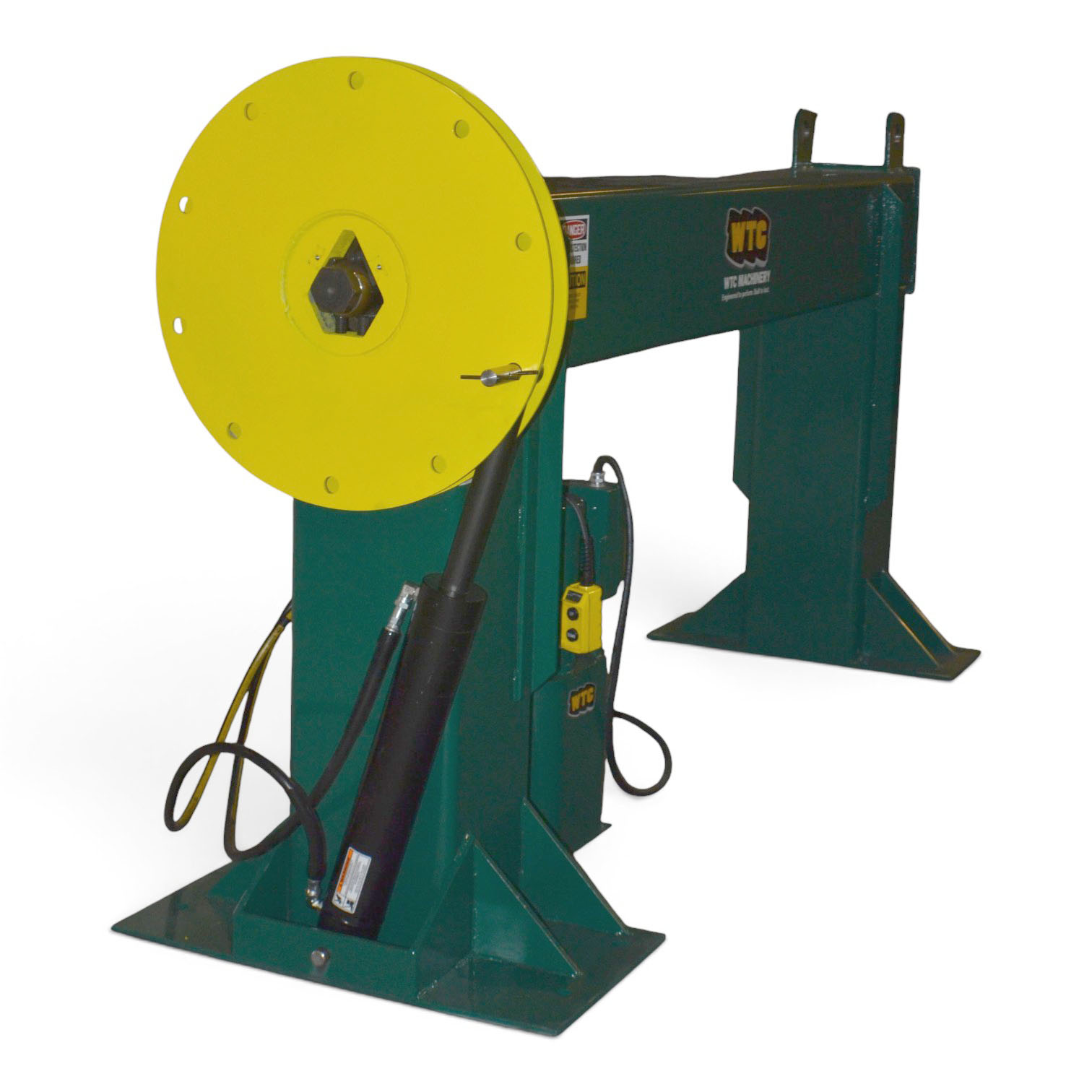

  • 20,000 lb-ft (27,100 N-m) of hydraulic torque for loosening and tightening stubborn piston nuts.
  • Compact footprint ideal for shops with limited floor space.

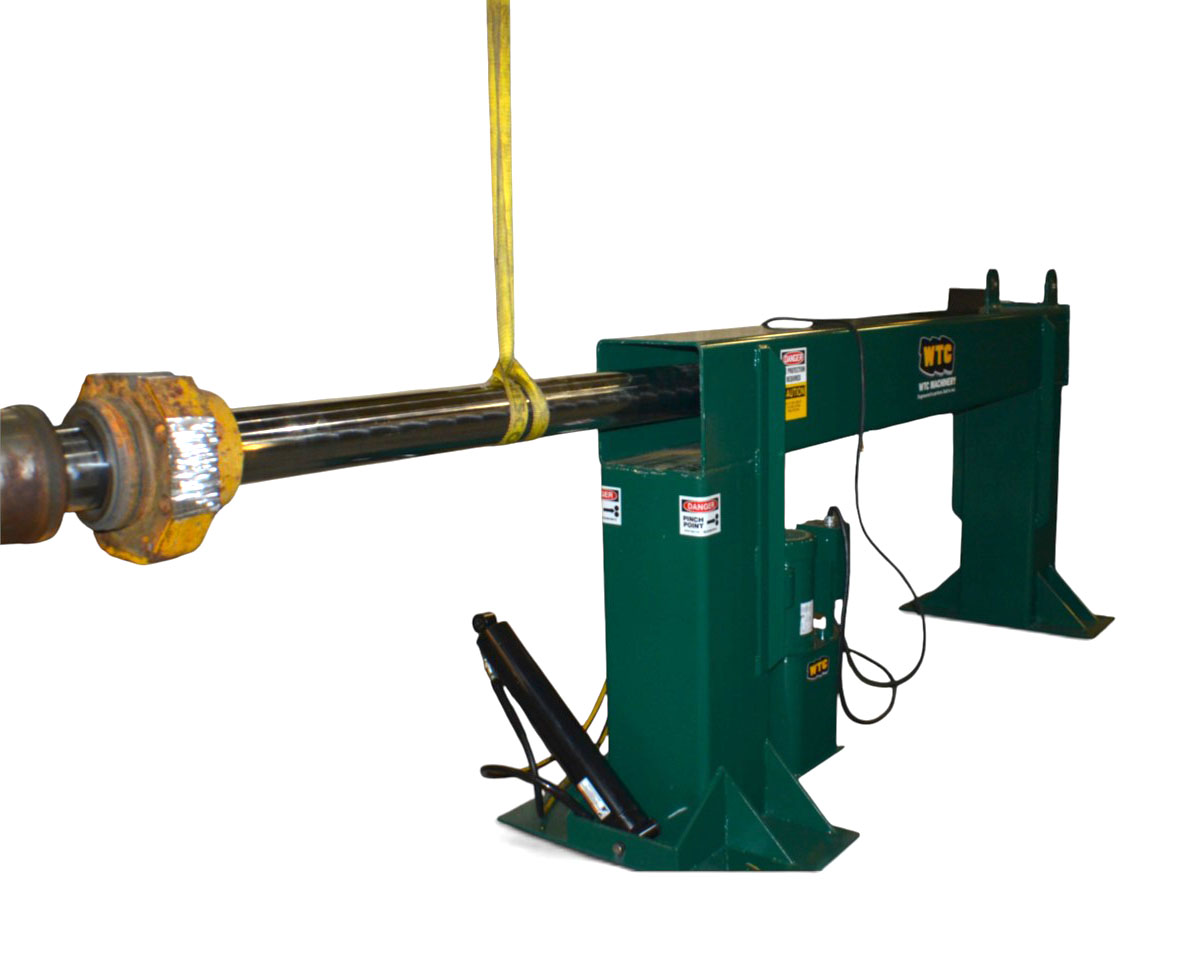

  • Integrated barrel storage on top of the frame to maximize workspace efficiency.

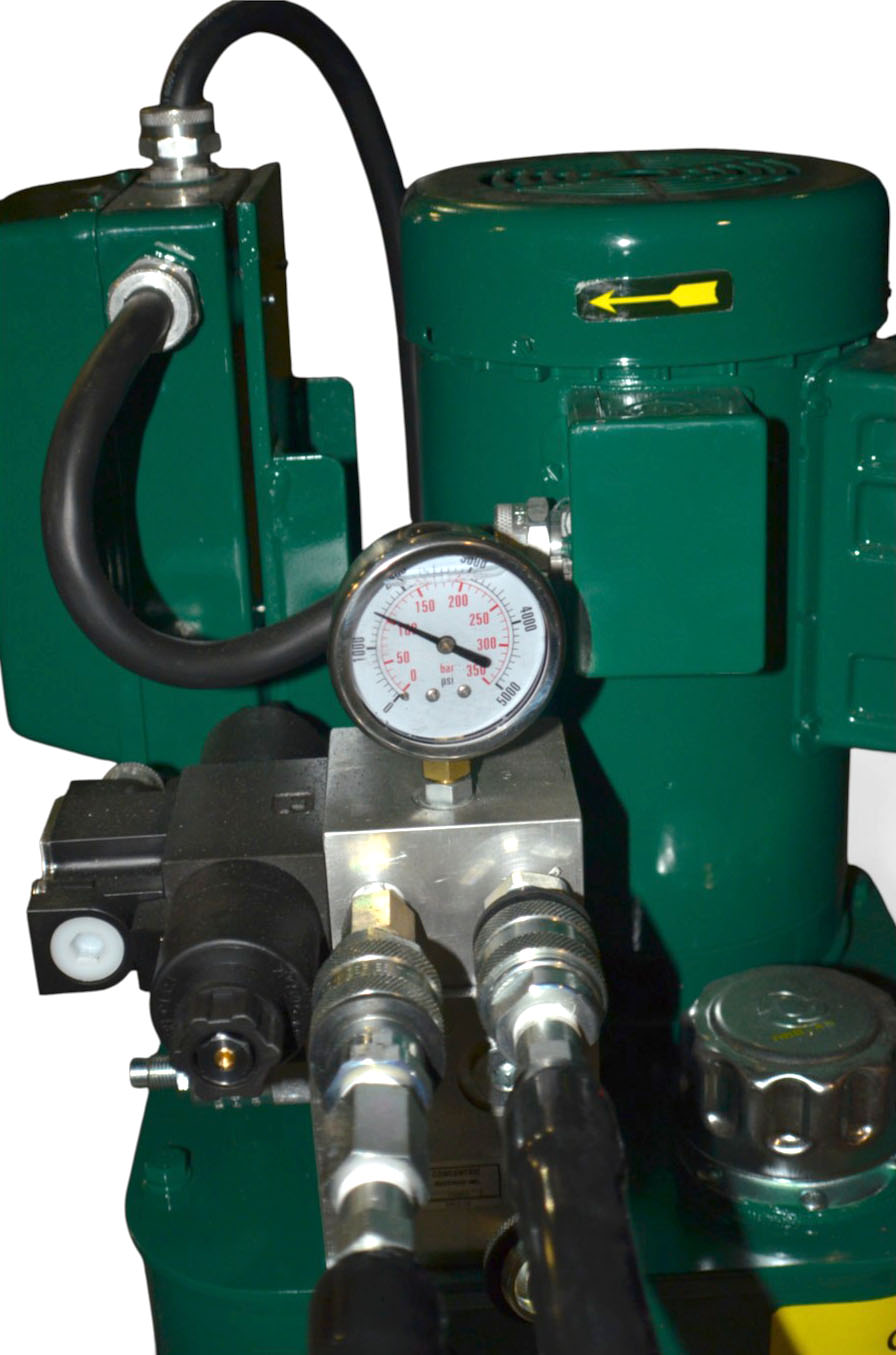

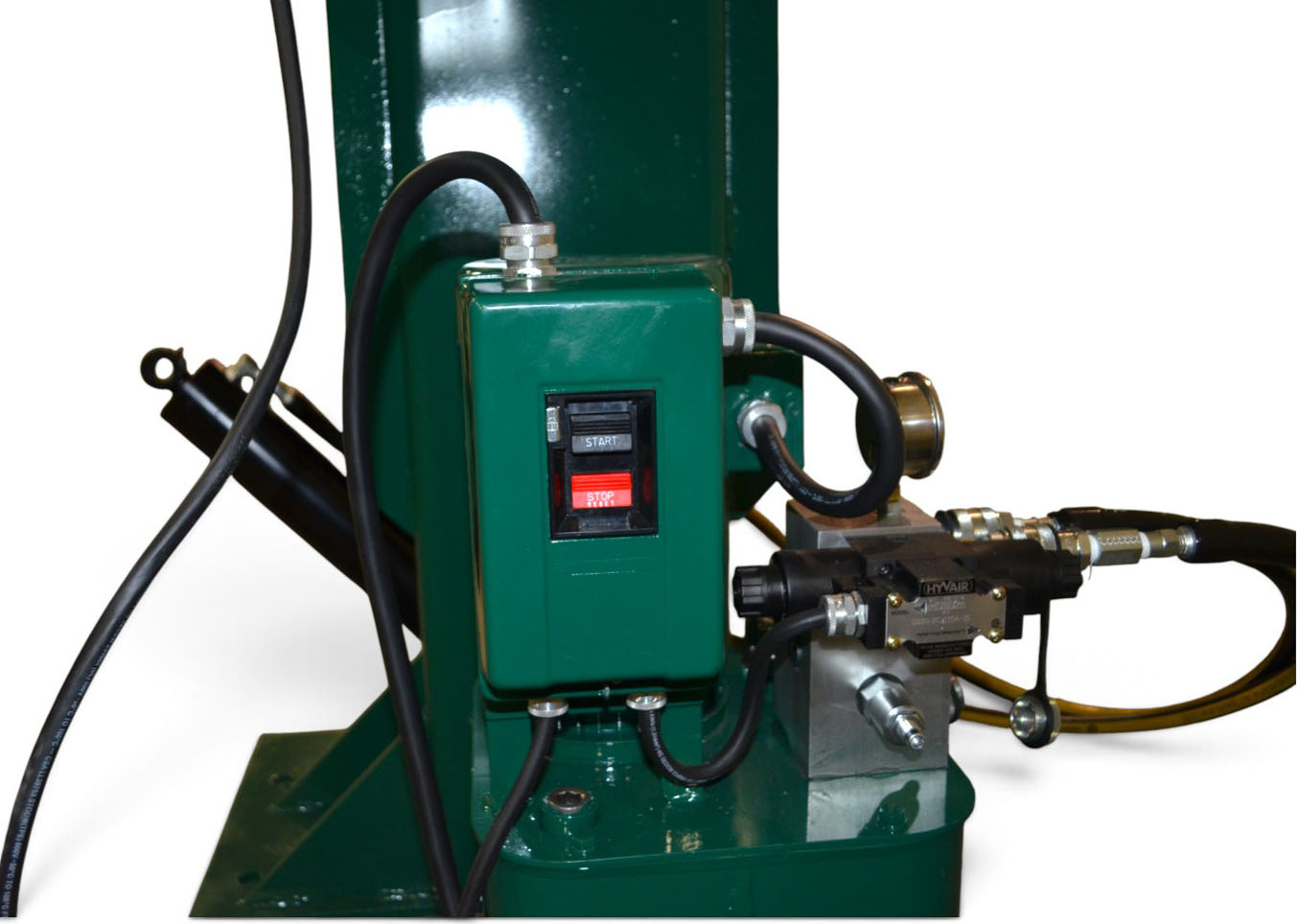

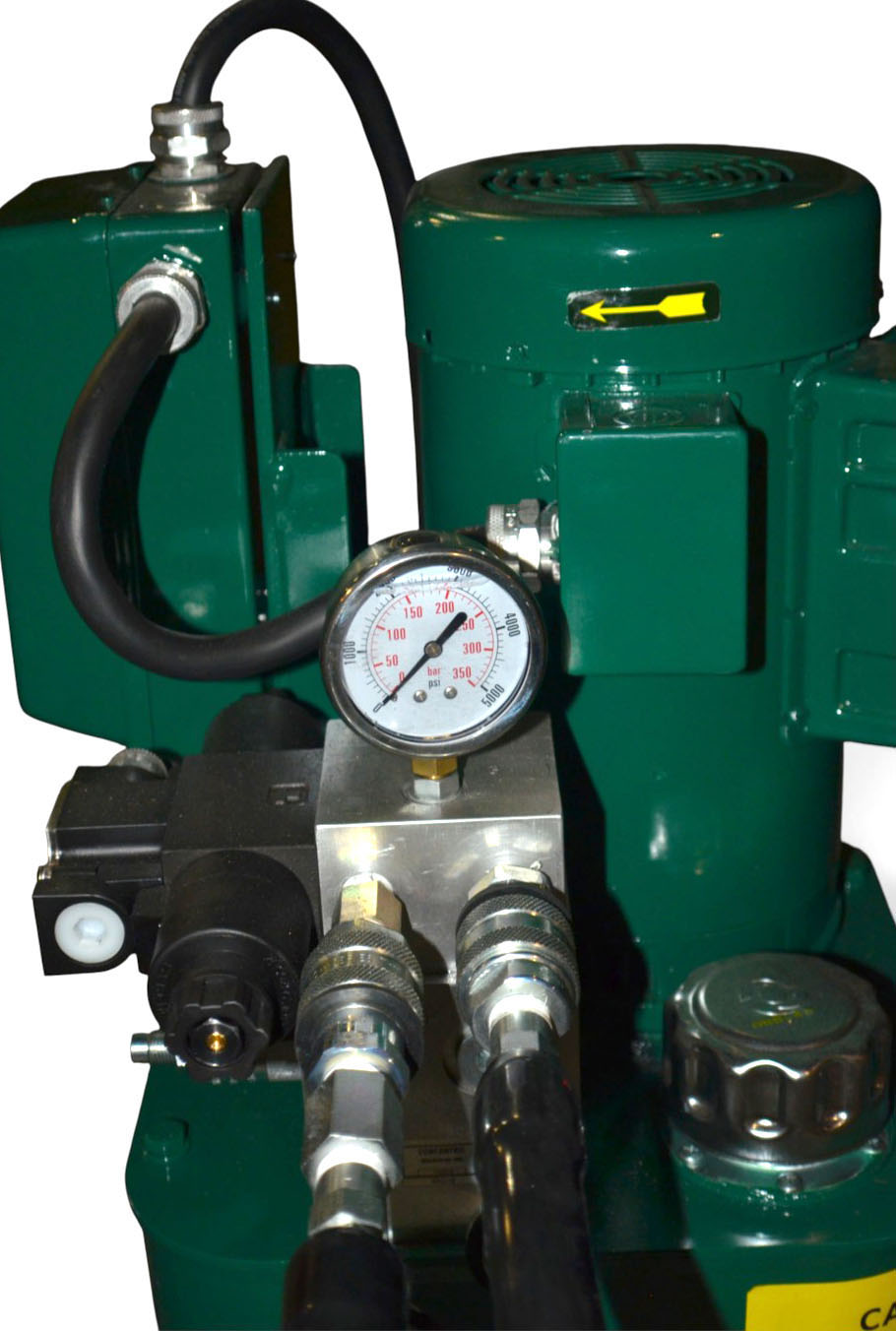

  • Self-contained hydraulic system for reliable, consistent operation.
  • Heavy-duty welded construction built to withstand demanding industrial environments.
  • Designed specifically for servicing rod-eye style hydraulic cylinders.

The SCRS is engineered to streamline hydraulic cylinder maintenance by providing technicians with a stable working platform and powerful hydraulic torque system. Its innovative frame design allows cylinder barrels to be stored directly on the bench, reducing clutter and improving workflow throughout the repair process.

From routine maintenance to demanding piston nut removal, the SCRS helps reduce downtime while increasing service efficiency.

Ready to improve your hydraulic cylinder repair process?

Contact WTC Machinery today to learn more about the SCRS Hydraulic Cylinder Repair Bench, available options, and pricing. Our team can help you select the right cylinder repair solution for your operation.

SPECIFICATIONS

MODEL SPECIFICATIONS

Maximum Cylinder Weight: 8,000 lbs (3650 kg)
Maximum Cylinder Barrel Diameter: 11.5 in (292 MM)
Maximum Cylinder Length (collapsed): 109 in (2.76 m)
Maximum Rod Eye Width: 8.8 in (225 mm)
Maximum Piston Nut Width (Across Flats): 6.3 in (162 mm)
Maximum Torque: 20,000 lb-ft (27,100 N-m)

ELECTRICAL SPECIFICATIONS

Power Requirements: 2 Hp (1.5 kW )
Standard Voltages:
  120V / 60 Hz
  220V / 50 Hz
  230V / 60 Hz
  Single Phase
  Other voltages are available upon request.
