HCRS-1C Medium Duty

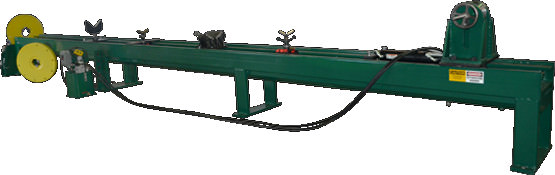

HCRS-1C Hydraulic Cylinder Repair Stand

Request a Quote Today

The HCRS-1C Hydraulic Cylinder Repair Stand provides a stable platform for disassembling, servicing and reassembling hydraulic cylinders. The HCRS-1C provides hydraulic assist to remove and reinstall the piston assembly, and a full set of clamps and supports to safely service only rod eye hydraulic cylinders.

Using the self-contained hydraulic system, the HCRS-1C removes and re-installs piston keeper nuts with torque up to 20,000 ft-lbs (27,100 N-m), and removes and installs piston rods with a force up to 28,860 lbs.

SPECIFICATIONS

MODEL SPECIFICATIONS

Maximum Cylinder Weight: 8,000 lbs (3650 kg)
Maximum Cylinder Barrel Diameter: 20 in (0.76 m)
Maximum Cylinder Length: 120 in (3.04 m) *
Maximum Rod Eye Width: 8.8 in (225 mm)
Maximum Piston Nut Width (Across Flats): 6.3 in (162 mm)
Piston Extraction Force: 20,400 lbs (9270 kg-F)
Piston Insertion Force: 24,900 lbs (11320 kg-F)
Maximum Torque: 20,000 lb-ft (27,100 N-m)

*Unlimited with extensions

ELECTRICAL SPECIFICATIONS

Power Requirements: 2 Hp (1.5 kW )
Standard Voltages:
  120V / 60 Hz
  220V / 50 Hz
  230V / 60 Hz
  Single Phase
