Seal Tester & Lubricator

Keep your track-chain maintenance moving with a portable solution built for testing and lubricating track pins.

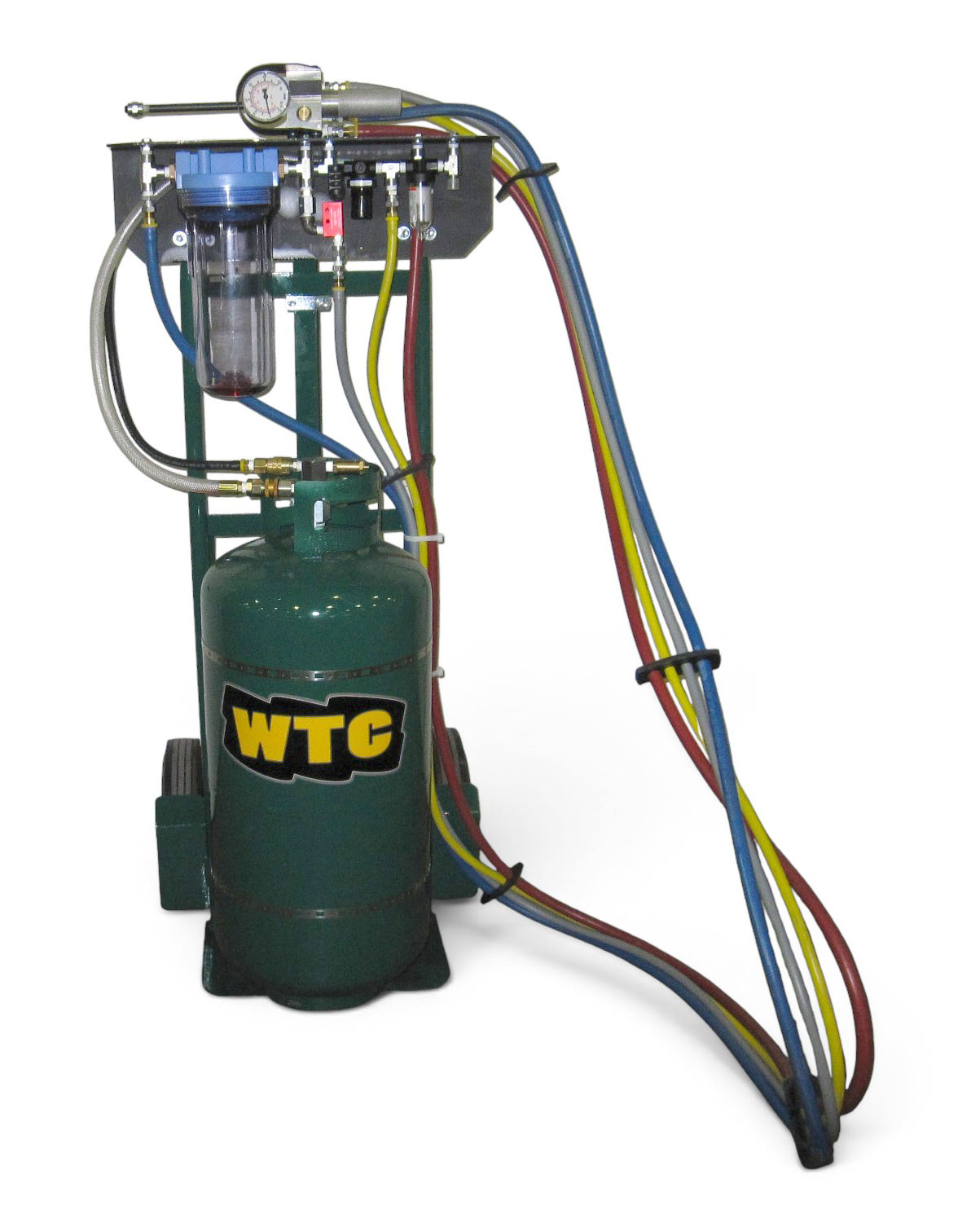

The WTC Seal Tester & Lubricator makes it easy to test track-chain seals and dispense oil with convenient push-button controls. An easy-to-read test gauge provides quick visibility during service, while the large-capacity lubricant tank helps minimize refills. Mounted on a wheeled cart, the unit can go wherever compressed air is available.

Key Benefits:

Test track-chain seals quickly and efficiently
Vacuum test and dispense oil with push-button controls

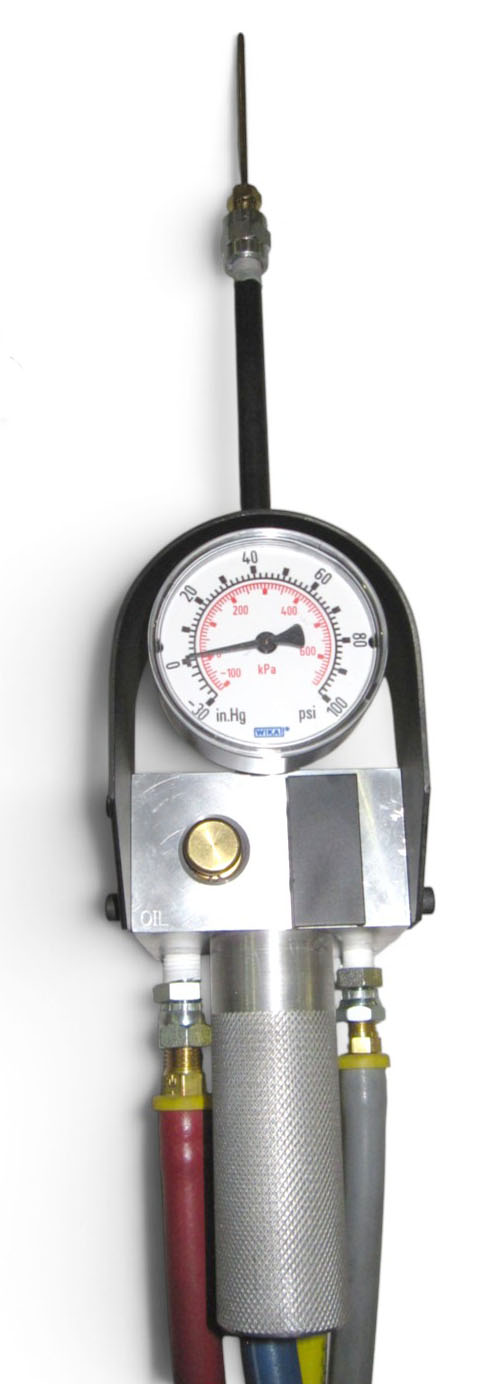

Easy-to-read test gauge
Large-capacity lubricant tank
Portable wheeled-cart design
Also ideal for servicing rollers and idlers
Operates anywhere compressed air is available

Need something more compact? Check out the Mini Luber. Looking for greater capacity and automation? The Auto Luber is built for higher-volume servicing.

NEEDLES

OPTIONAL NEEDLES FOR LUBRICATING TRACK CHAINS

Part Number:	Description:
A2024	Blunt Needle - normally used for CAT track
A2679	Rounded Tip - small diameter normally used on JD and Komatsu track
A3334	Sharp Tip - normally used on seals that are self-sealing (Sorefa)
A3422	Shaft of needle has two diameters and an open tip

SPECIFICATIONS

Air Supply:	4.2 SCFM (0.11 m3/min) at 70 psi (4.83 bar)
Lubricant Capacity:	10 gallons (37.8 liters)
Dry Weight:	104 lbs (47 kg) Hz

DOWNLOADS

Seal Tester Lubricator Product Specification Sheet

Reference image for needle types

Additional Test & Fill Lubricators

Portable For Job-Site Repair

Mini Luber is a portable solution for job-site repair of sealed and lubricated crawler track chains.

Most Accurate Testing & Lubrication

Auto Luber is the easiest, most accurate way to test and lubricate the track pin and bushing joints.
