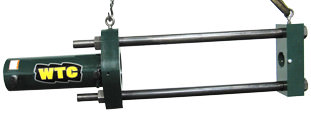

MPP150 -'Tie Rod' 150 Ton Portable Pin Press

Request a Quote Today

A step up from the FP100 is WTC Machinery’s mid-range MPP150 Portable Pin Press. Operating with a pressing force up to 150 tons and is a workhorse able to handle those tougher jobs.

This 150 ton pin press features a tie rod design making it easier to service larger construction or mining equipment. It is ideally suited to service excavators and bulldozers up to a Caterpillar D10, Komatsu PC800, and D275. As with all our presses it has the capability to service different makes of excavators and bulldozers or any type of machinery using track style chains. With the full range of tooling, the MPP150 pin press can service track style chains with pin diameters ranging from .87" (22,0mm) up to 2.75" (69,8mm).

The MPP150 is available without a hydraulic pump, or we provide several durable pumps to match shop or a service truck power. Electric is the most popular option, 115V or 220V (50 or 60 Hz and CE certified), Air or Hand (recommended only for those circumstances when no outside power source is available).

For safety during use, we also offer an optional pressure gauge, lifting sling (engineered specifically for use with this press) and a safety blanket (to protect from possible flying debris). With the MPP150 press, WTC offers our custom travel/storage box or a travel skid with optional cover box for safe and secure storage and transportation of your MPP150 press, pump and tooling.

If you service equipment larger than this press can handle, then the MPP250, would be the way to go.



SPECIFICATIONS

The MPP150 is offered with a variety of hydraulic pumps to match shop and service truck power.

Supply Power Model Power
No Pump - FP100 -
Hand Pump - FP100H -
Electric 115 V 60Hz 12 Ampere 1ø FP100E 1 1/2 HP
Electric 220 V 50Hz 5 Ampere 1ø FP100-220-50 1 3/4 HP
Electric 220 V 50Hz 11 Ampere 1ø FP100-220-CE 1 3/4 HP
Electric 220 V 60Hz 5 Ampere 1ø FP100-220 1 1/2 HP
100psi Compressed Air 62 SCFM 1, 8m3/min @ 6,9 bar FP100A 4 HP
DOWNLOADS

Track Models - CAT D10 & Below, KOMATSU PC800, D275 & Below, and all comparable tracks. Pin diameters ranging from .87" (22,0 mm) to 2.75" (69,8 mm)
All of WTC Machinery's portable presses are CE Certified. CE Pumps are available as well!
