FP250 - 250 Ton Portable Pin Press

Request a Quote Today

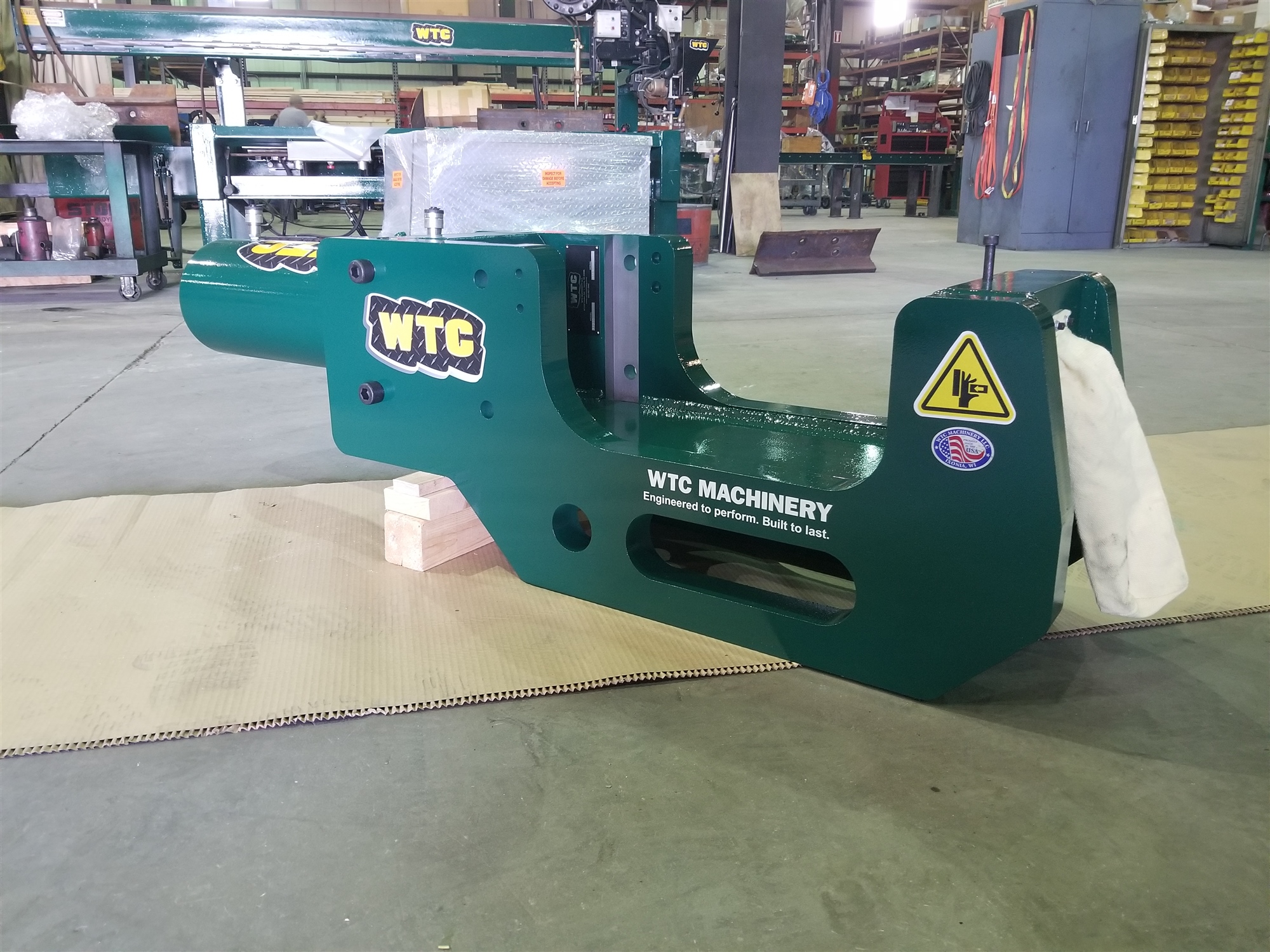

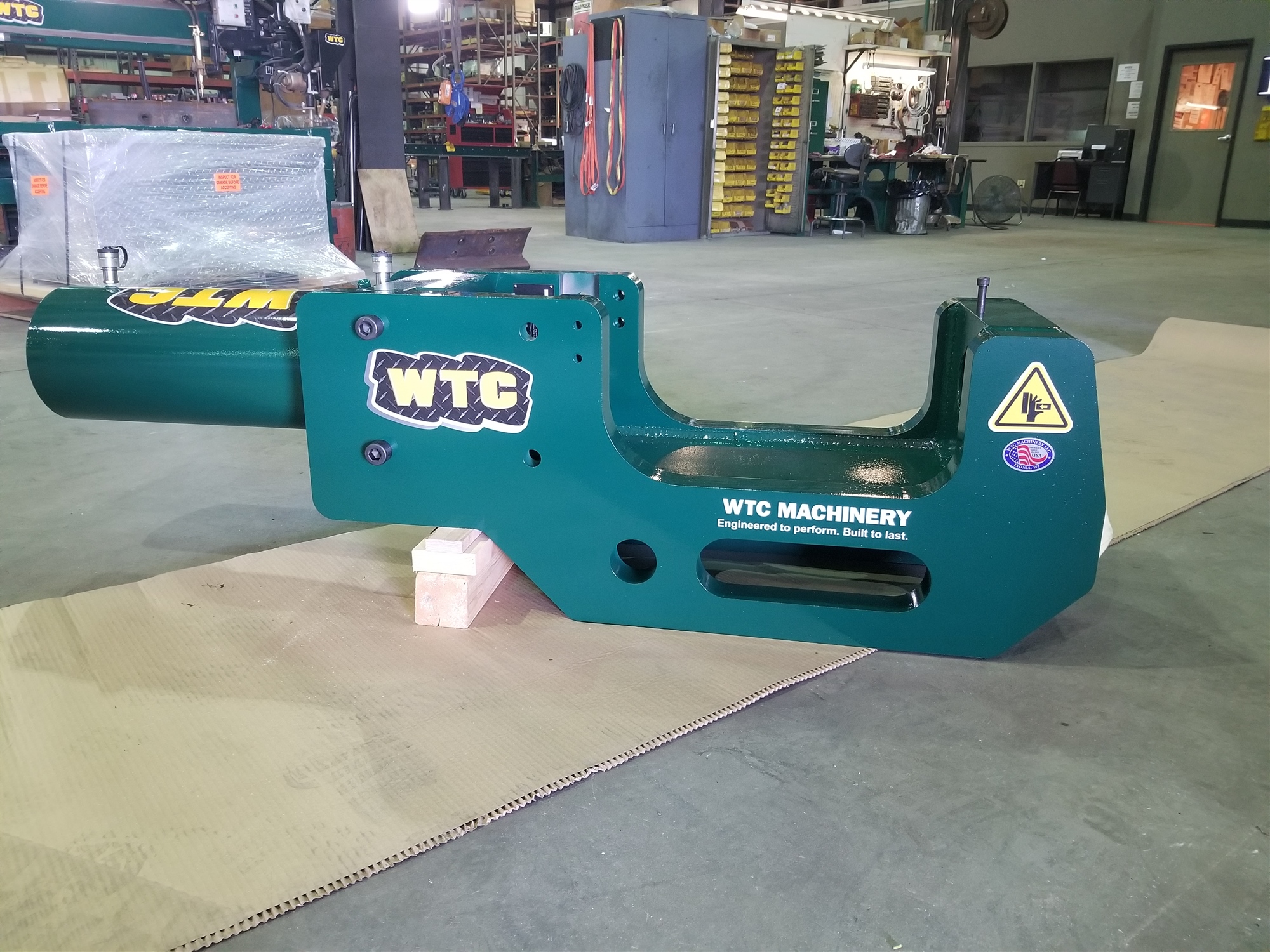

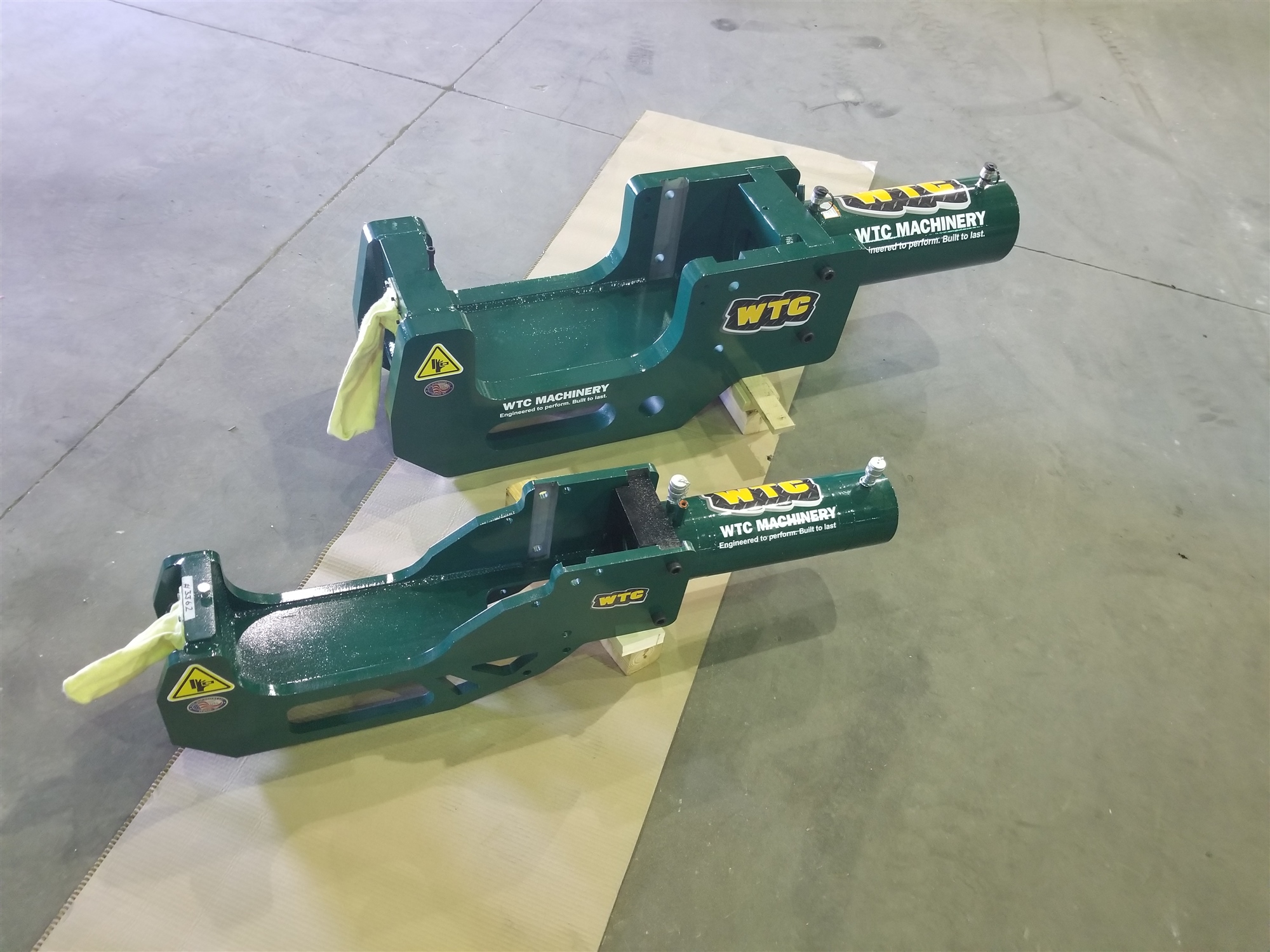

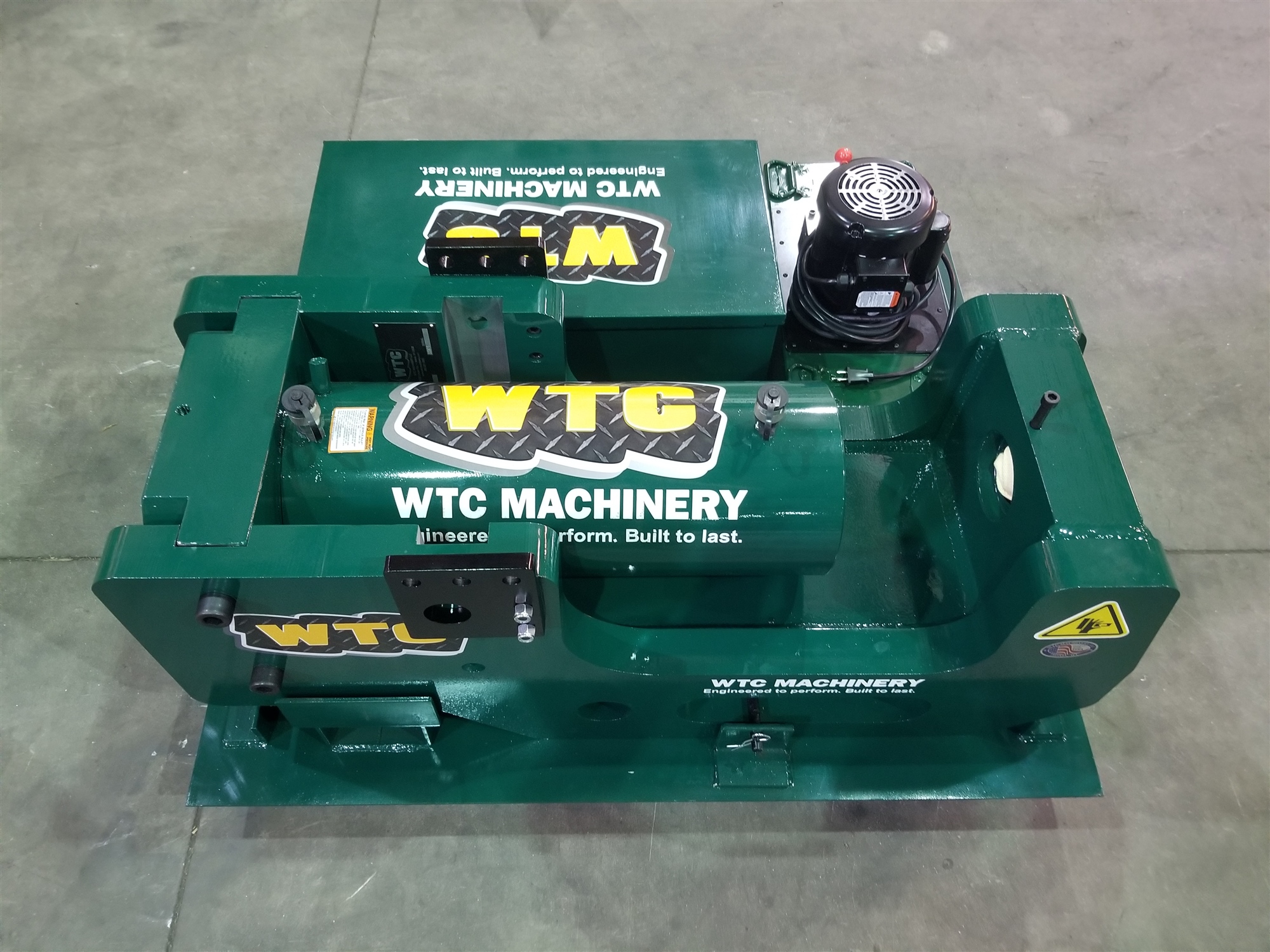

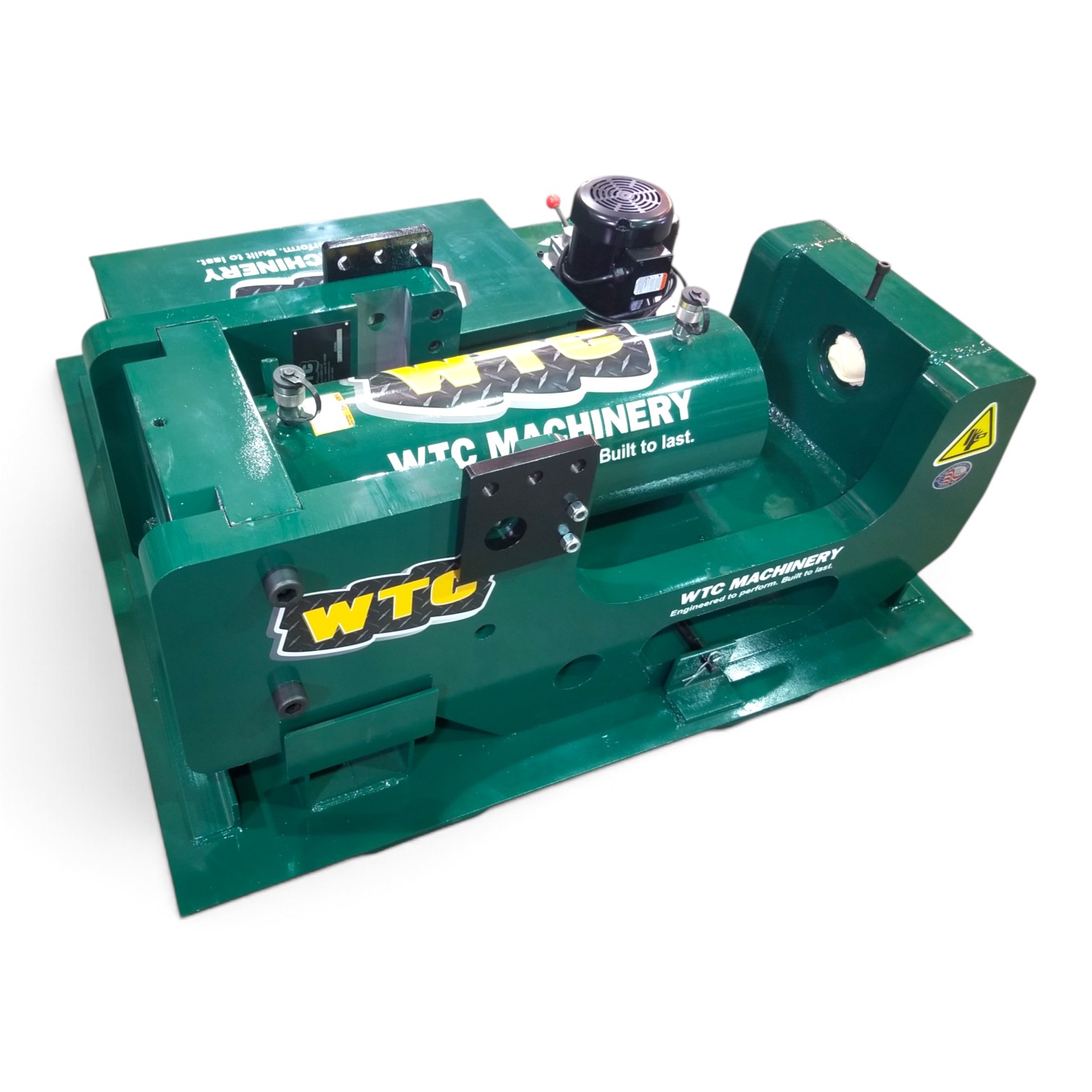

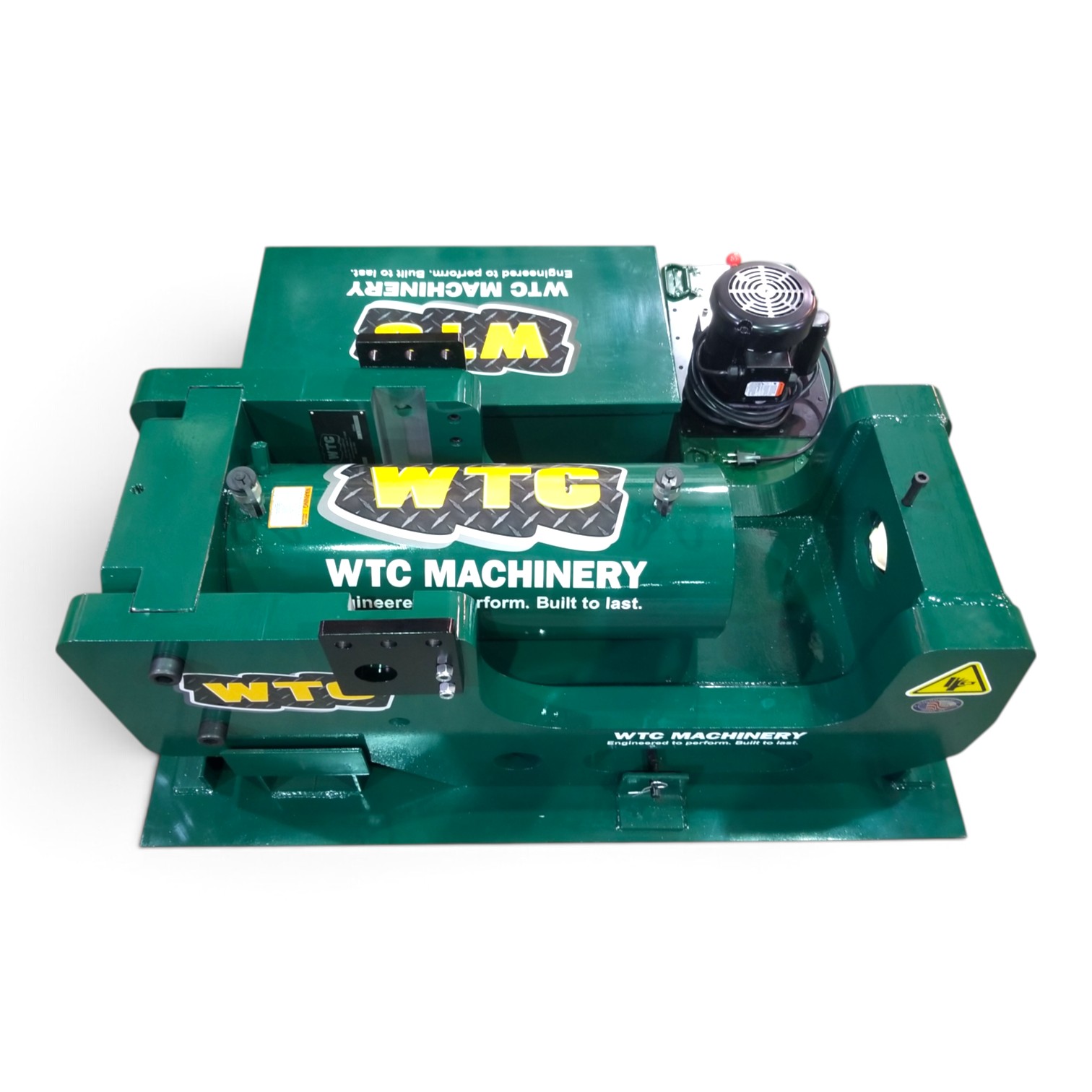

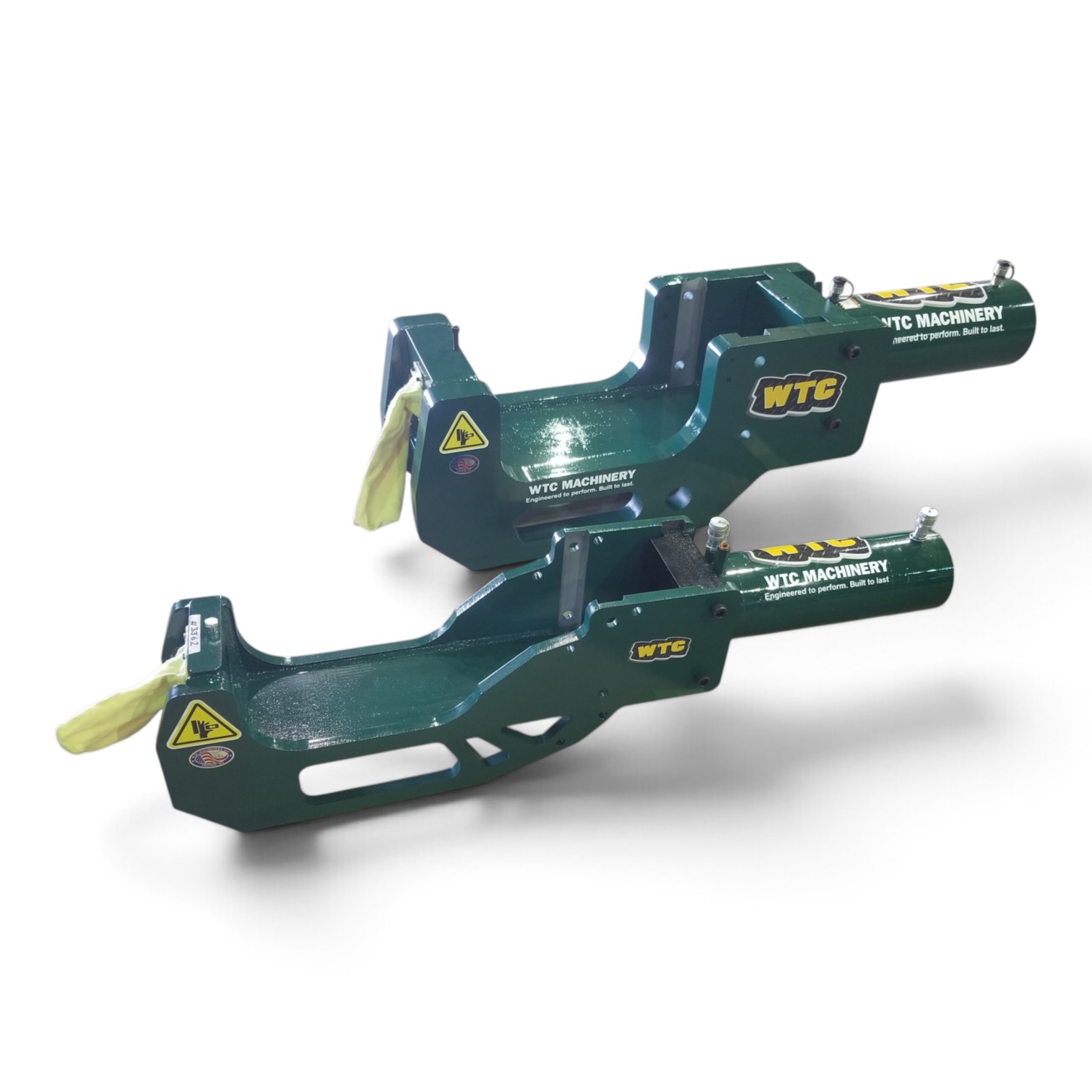

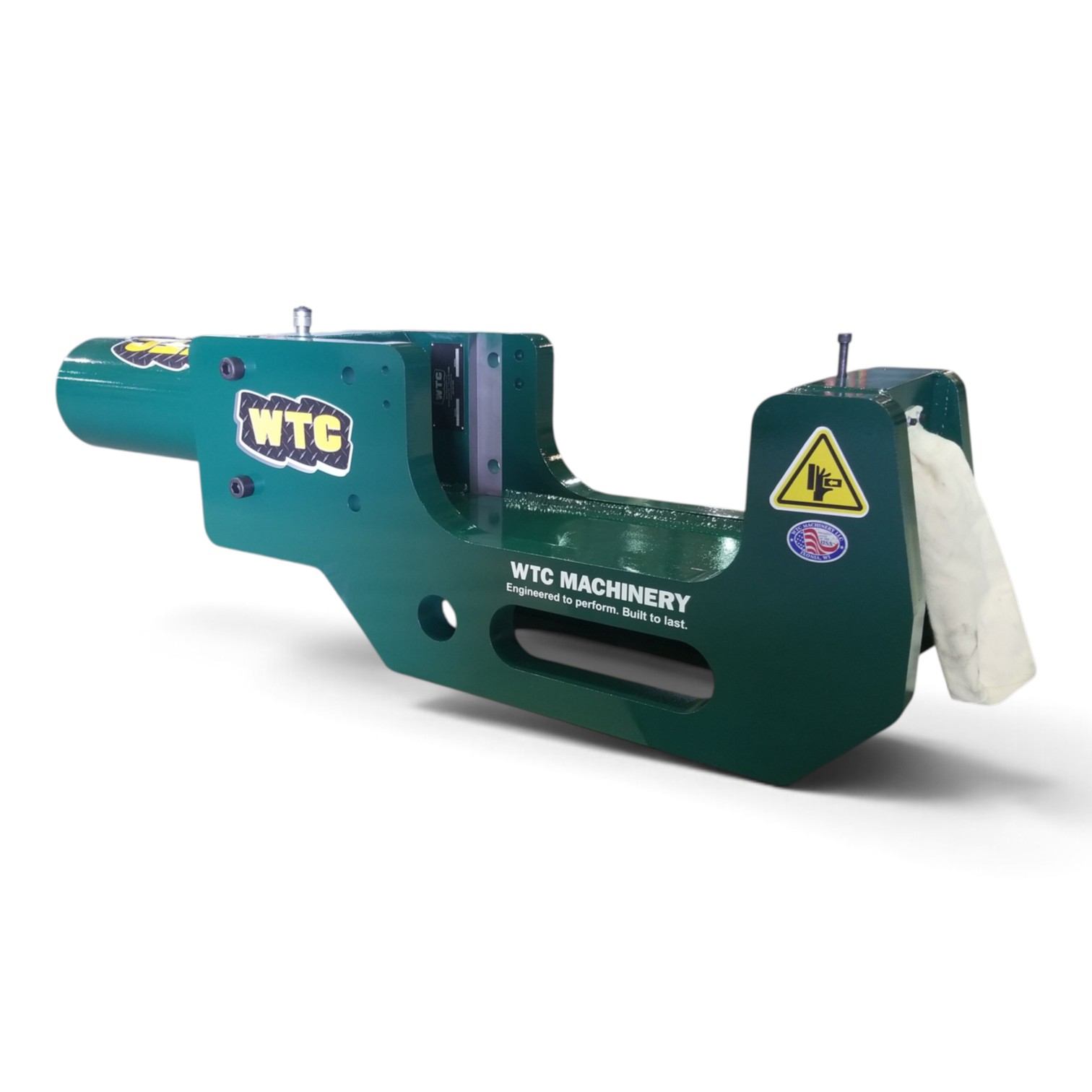

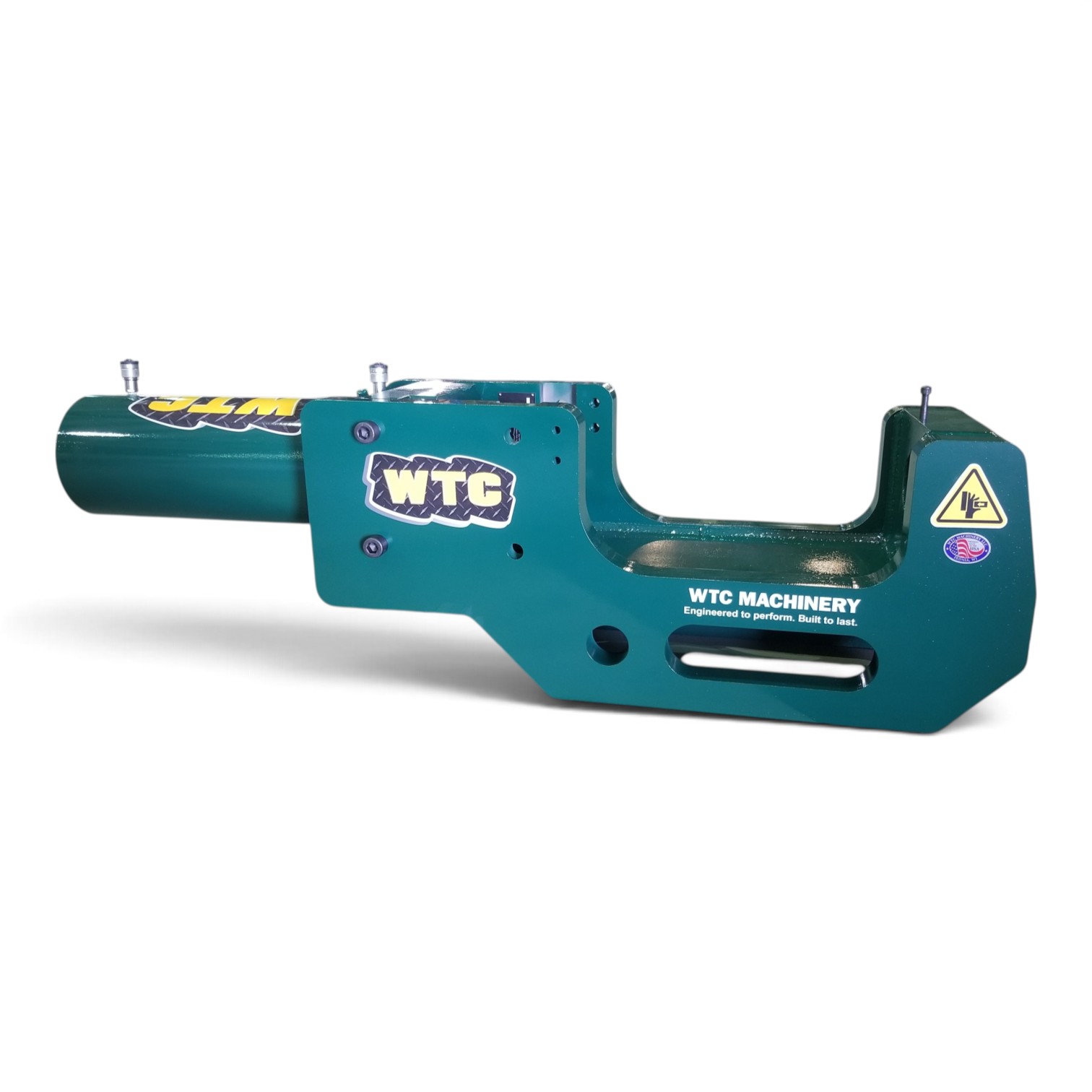

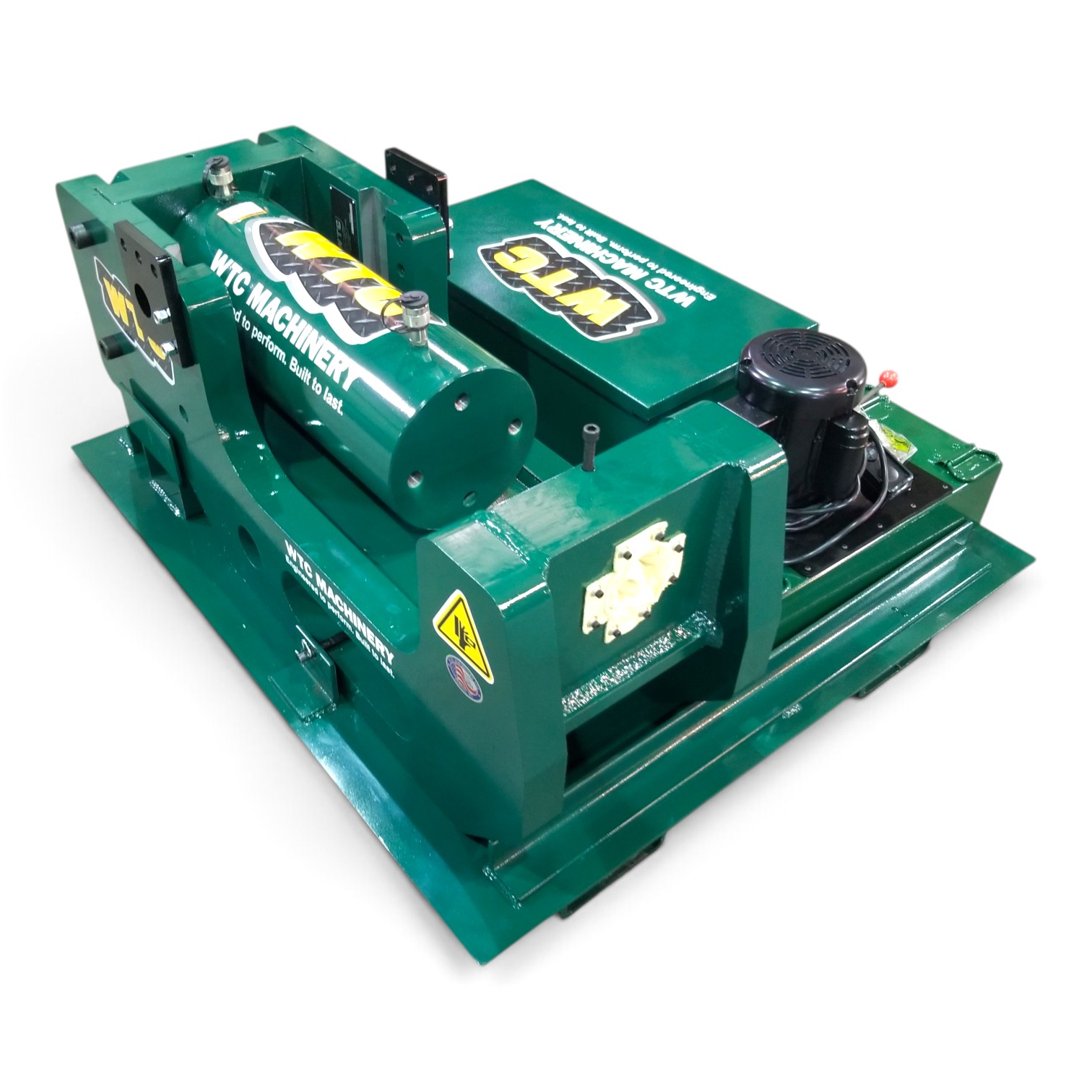

The all new WTC FP250 pin press has a similar design as our FP100 press, however, much larger with 250 tons of force to press the largest of dozer, excavator and feeder chain. This is an option designed specifically for situations where the MPP150 or MPP250 tie rod design will not work or for those operators who like the c-frame design. Using the same tooling as the MPP250 it is capable of service the same Caterpillar D11, Komatsu 475 and 575 tracks or pin diameters ranging from .87" (22,0mm) up to 3.55" (89,9mm).

As with the MPP250, The FP250 is available without a hydraulic pump, with Electric 115V or 220V (50 or 60 Hz and CE certified) and Air powered pumps.

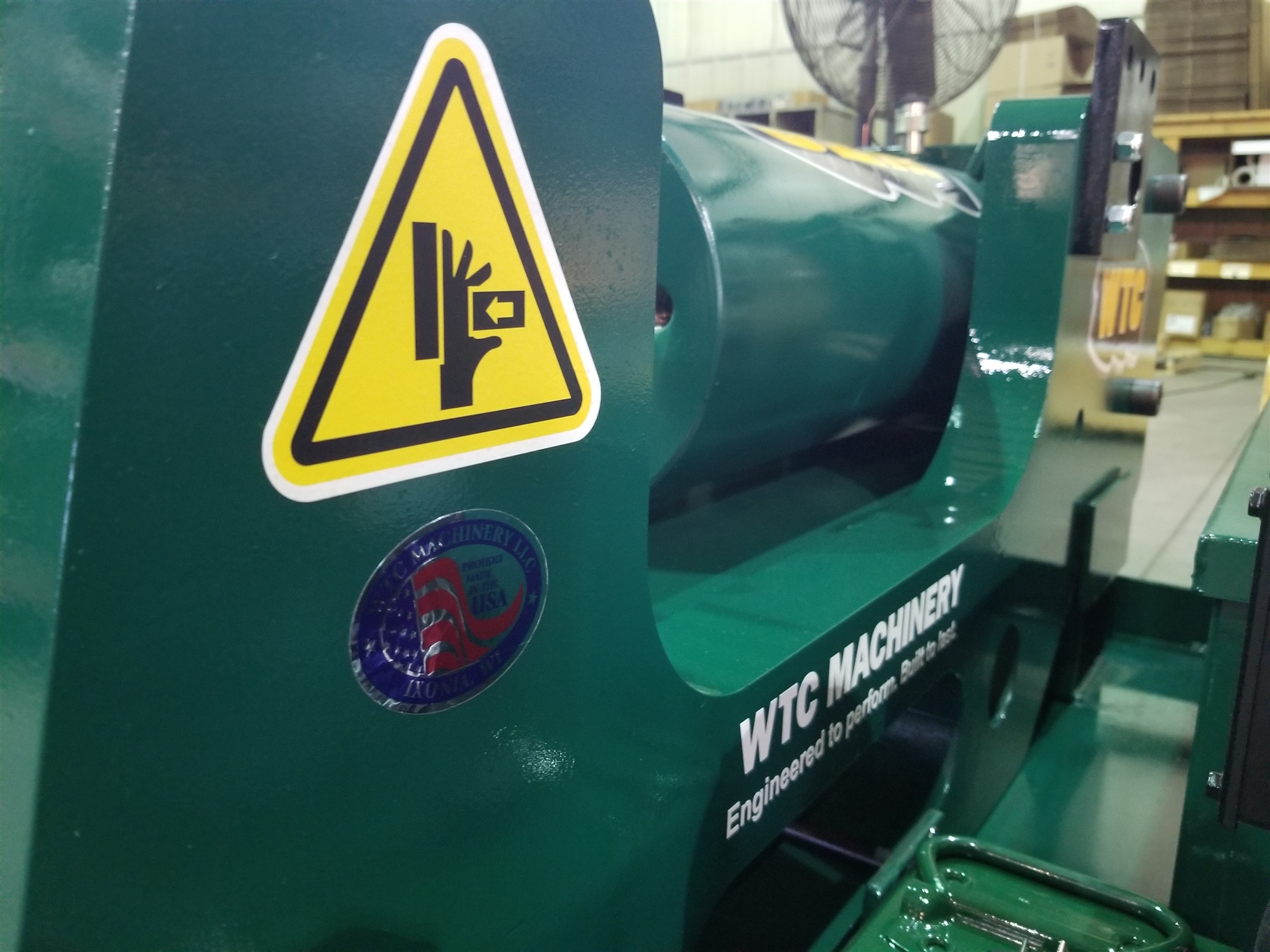

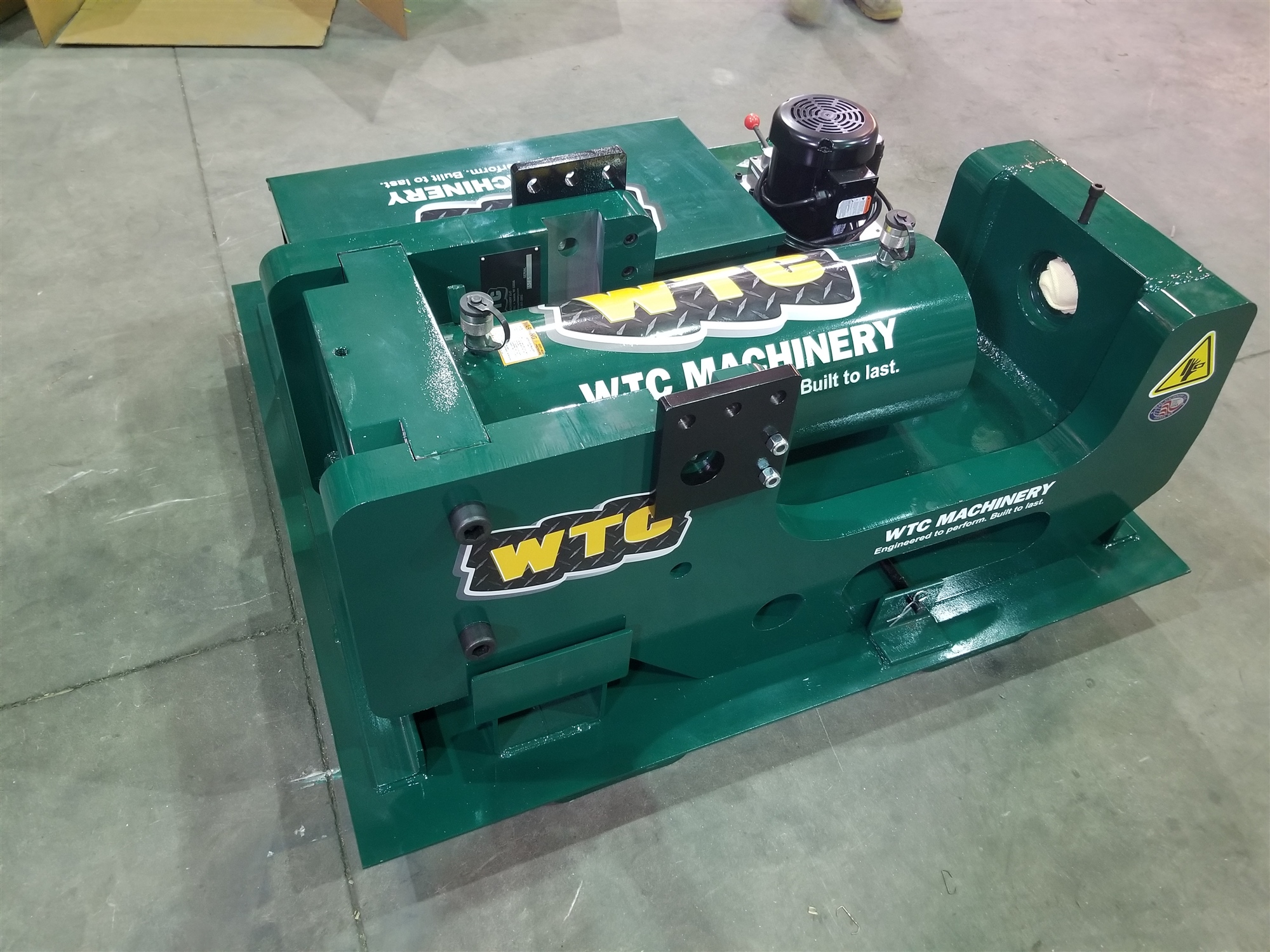

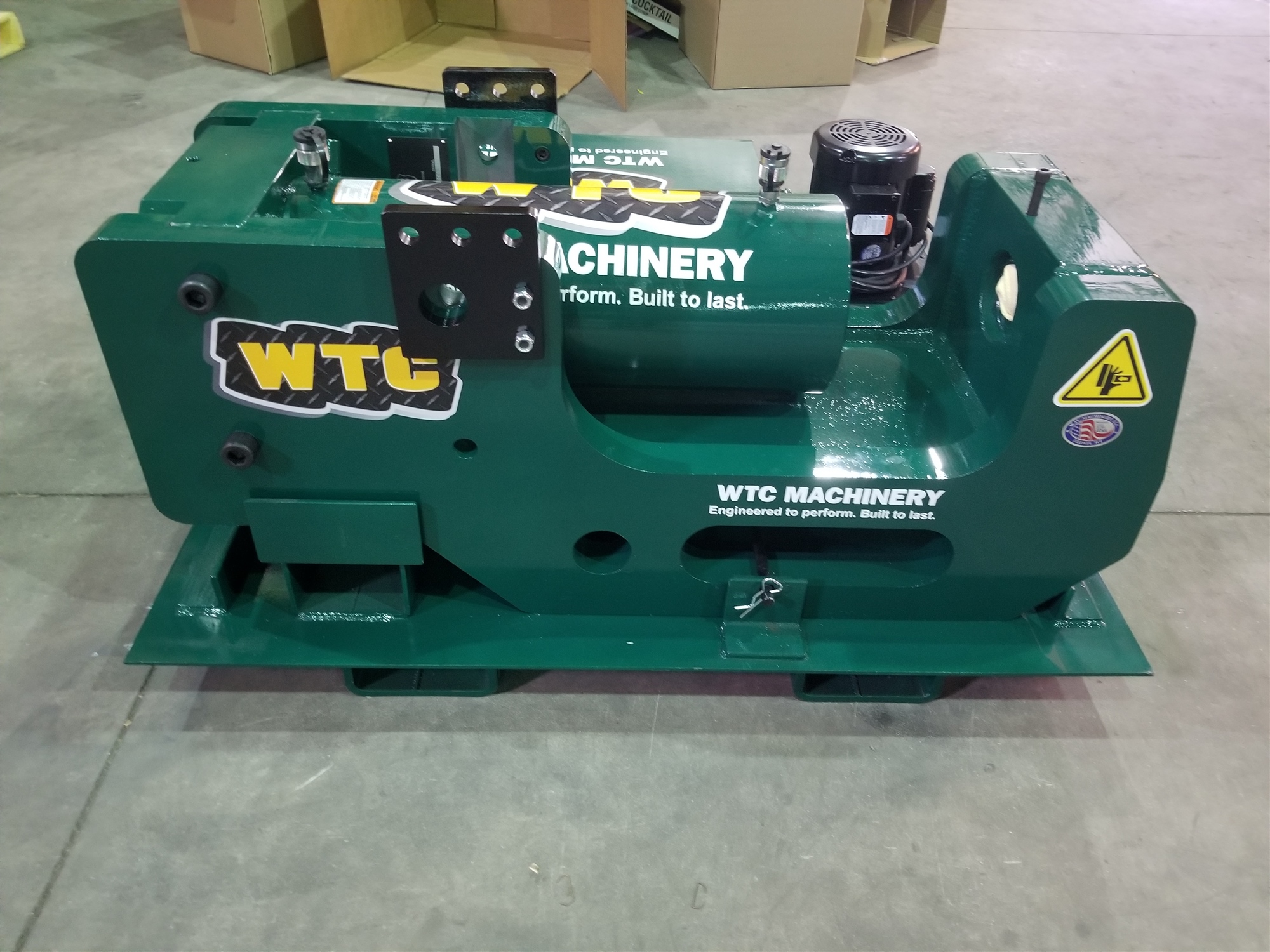

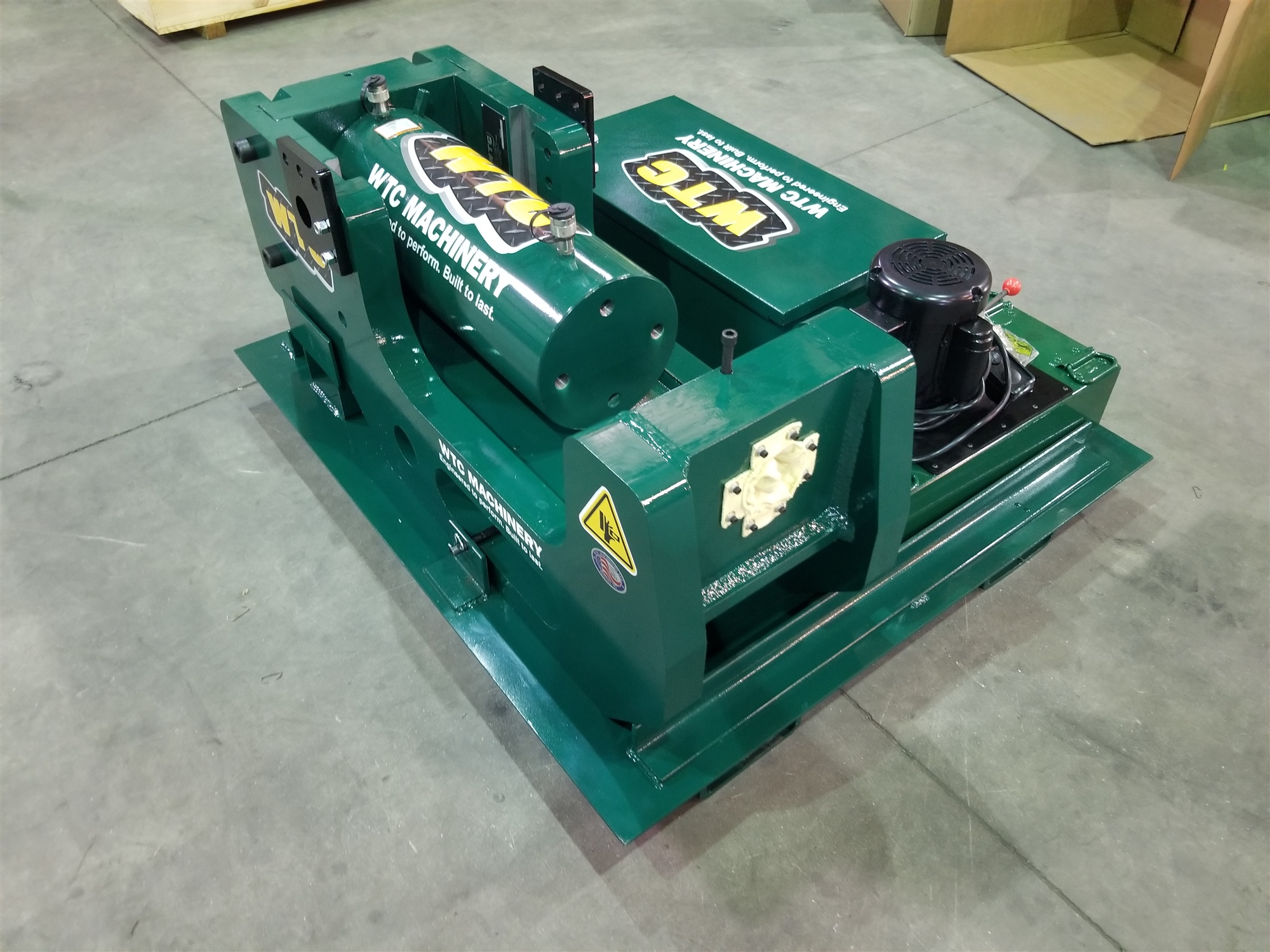

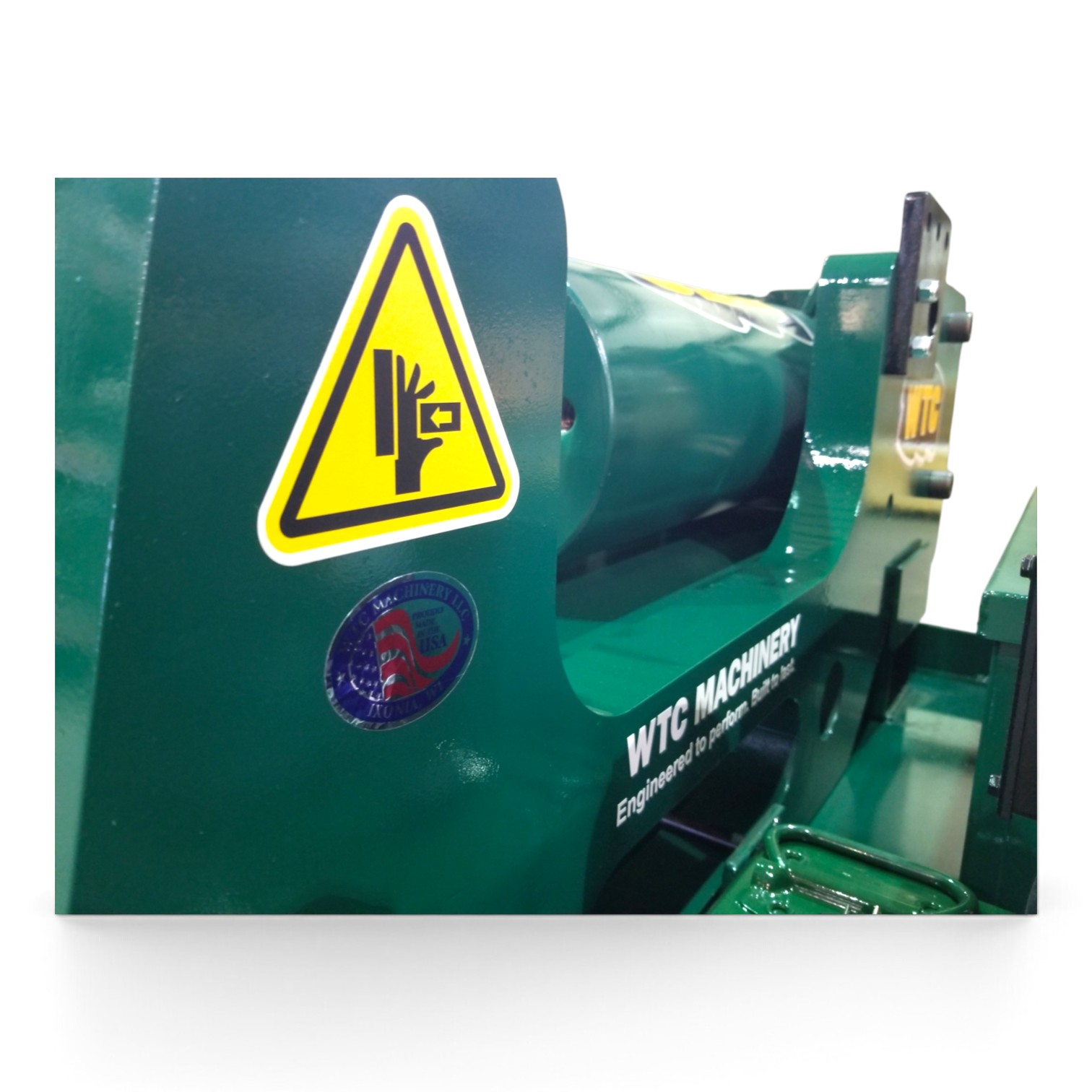

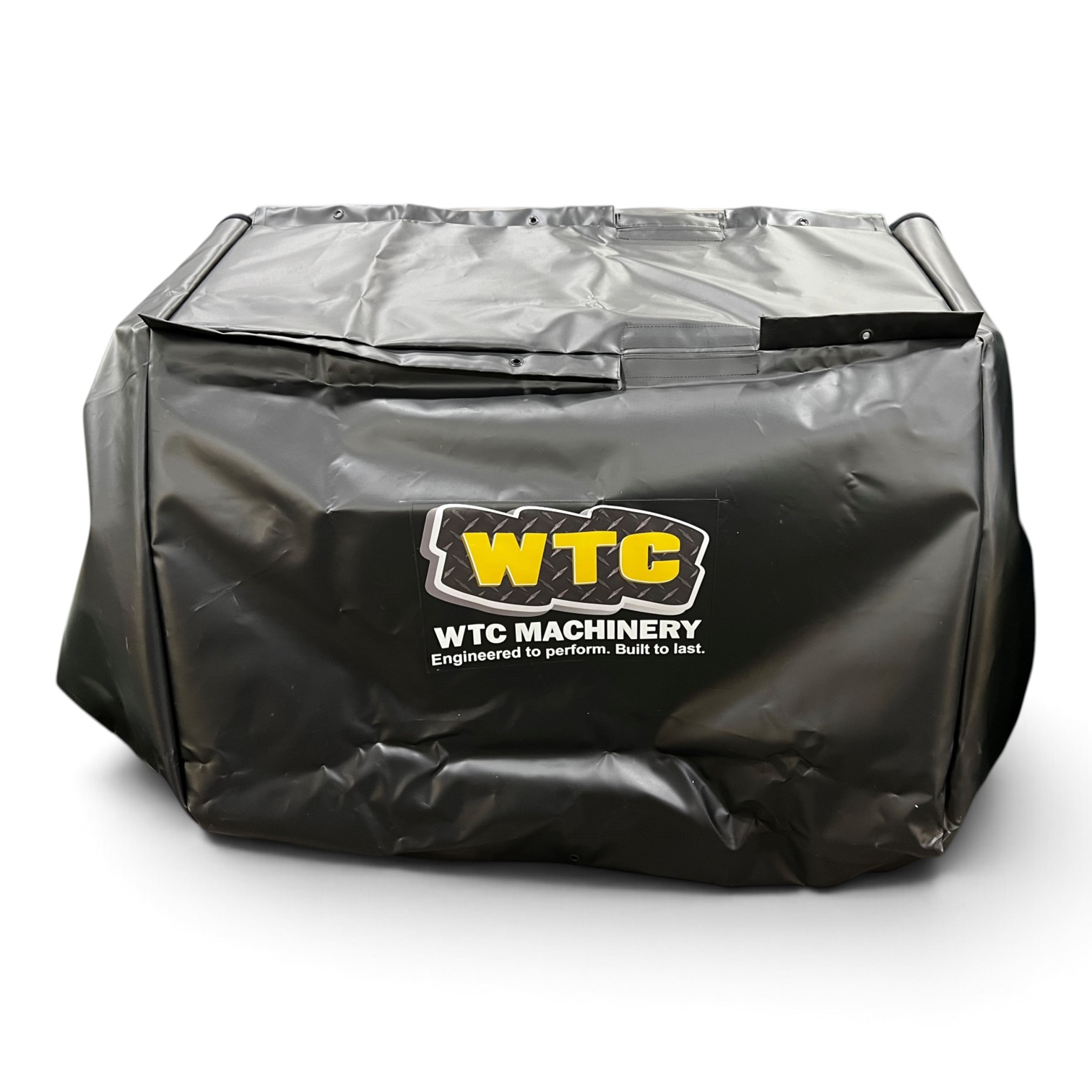

For safety during use, a lifting sling (engineered specifically for use with this press) a safety blanket (to protect from possible flying debris) are also available along with a travel skid and optional cover to protect your investment to safely transport and store your FP250 with the pump and tooling.

SPECIFICATIONS

The FP250 is offered with a variety of hydraulic pumps to match shop and service truck power.

Supply Power Model Power
 No Pump - FP250 -
Electric 120 V 60Hz 17 Ampere 1ø FP250-E 1 1/2 HP
Electric 230 V 60Hz 9 Ampere 1ø FP250-220DOM 1 1/2 HP
Electric 220 V 50Hz 9 Ampere 1ø FP250-220 1 1/2 HP
Electric 220 V 50Hz 9 Ampere 1ø FP250-220CE 1 3/4 HP
Air 62 SCFM (1.8 m3/min) 100 psi (6.9 bar) FP250-A 4 HP
DOWNLOADS

Track Models - CAT D11, KOMATSU PC2000, D475, and all comparable tracks.

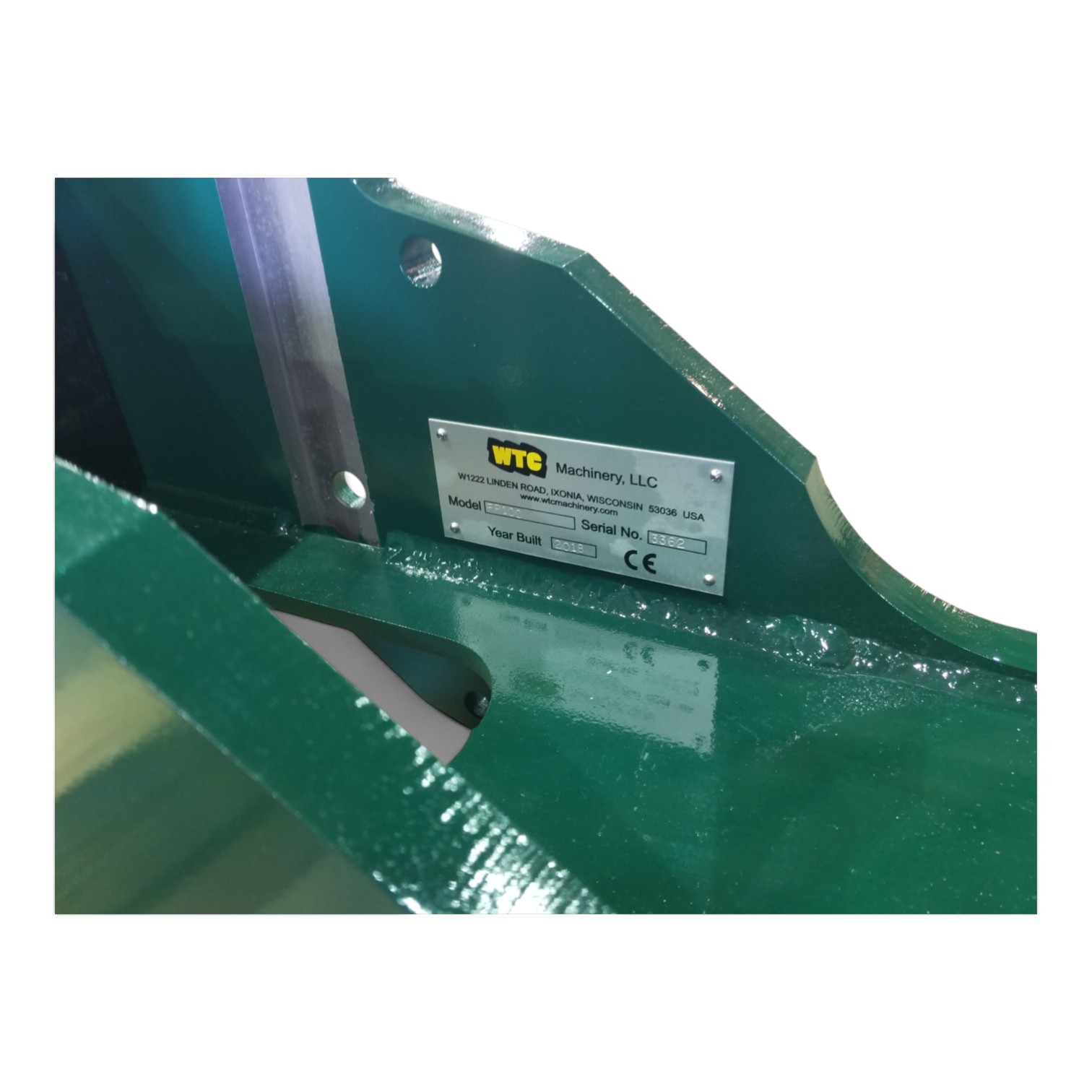

Pin diameters ranging from .87" (22,0 mm) to 3.55" (89,9 mm). All of WTC Machinery's portable presses are CE Certified. CE Pumps are available as well!
