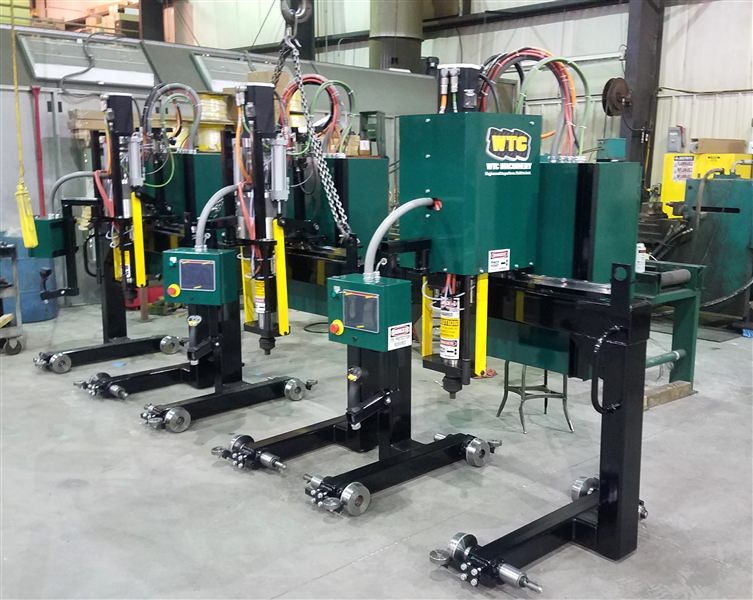

EL10000 Electric Torque Wrench

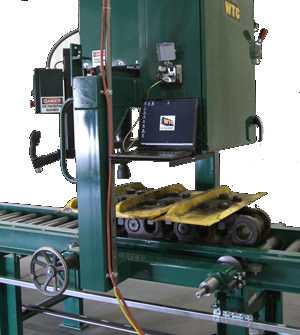

The EL10000 is the successor to the MT10000 and has been sold throughout the world with great feedback and reviews. WTC has kept a similar design to the MT10000 including remote diagnosis and program updates, data acquisition, precise torque ability, simple and quiet operation, and light design, but added some features that we found to be beneficial in the track shop.

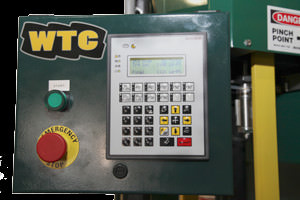

The new features include updated components, new rigid track shop approved joystick control, model first hydraulic hold down and faster speeds. The controls remain the same, but now the EL10000 has the ability to achieve even the lowest OEM bolt specifications all while performing each OEM's specific torque turn ranging from 60, 90, 120, 150, and 180 degrees.

The speed has been increased from 241 max RPM to 422 RPM. That's a 75% increase from the original design. Faster speeds mean quicker turn around time to your customers.

On top of that, the addition of the hydraulic hold down keeps the socket secured to the most heavily worn bolts. This helps reduce time, fatigue and unwanted wear by eliminating the need to torch the bolts out.

**We also offer a complete conversion to all of the existing MT10000 torque wrenches. This conversion gives all of the new features of the EL10000 to your wrench in a conversion package. Please contact us for additional details.**

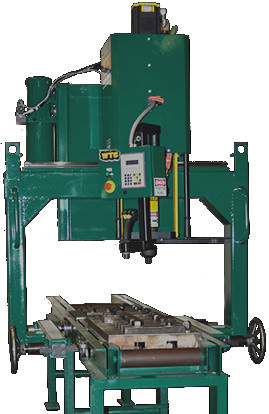

WTC offers a variety of carriages to fit the MT10000 to all popular track presses and pad change lines, and a full compliment of impact sockets, extensions, adaptors and track nut wrenches to work with the MT1000.

Model Specifications

Maximum Torque:
8,000 lb-ft (11,000 N-m)
Max Spindle Speed:
422 RPM
Hydraulic Down Force:
1,500 lb/f (6,670N)
After Turn Torque Angles:
60, 90, 120, 150, 180
Torque Turn Range:
225 lb-ft to 7,000 lb-ft
Inside Carriage Dimensions:
48" (1,21m)

Electrical Specifications

Electrical Supply:
5 HP (3.7 kW)
Standard Voltages:
Three Phase
208V / 55.20A / 60 Hz
220V / 57.96A /50 Hz
230V / 50.00A /60 Hz
380V / 52.50A / 50 Hz
415V / 26.25A / 50 Hz
460V / 25.00A / 60 Hz
