Hydraulic Cylinder Repair Benches

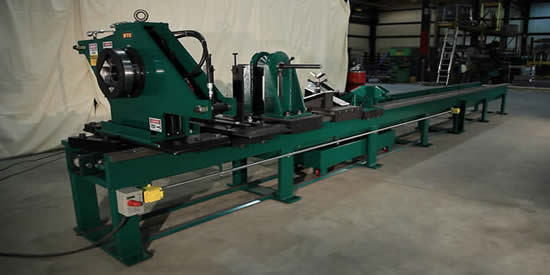

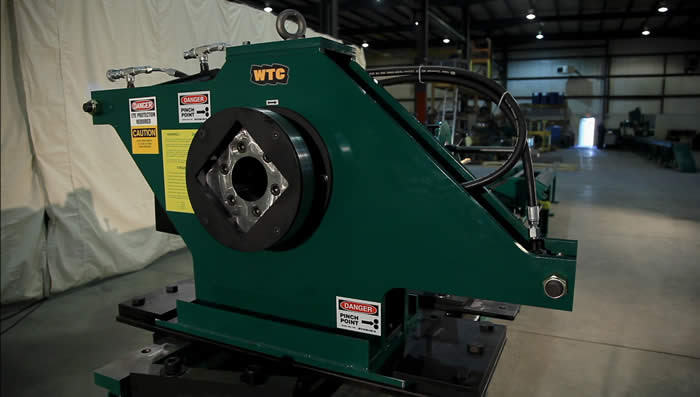

Hydraulic Cylinder Bench WTC offers three Hydraulic Cylinder Repair Benches, from the space-saving SCRS to the do-it-all HCRS-4P. All provide sturdy, long-lasting support structures and high capacity nut torqueing. The HCRS-1C has powered piston extraction, while the HCRS-4P adapts to practically every construction and mining cylinder.

Hydraulic Cylinder Repair Stand


Model Max. Torque Weight Capacity  Barrel Diameter  Cylinder Length Nut Size Powered Extraction
SCRS 20,000 lb-ft  8,000 lbs (3650 kg) 11.5 in (292 mm) 109 in (2.76 m) 6.3 in (162 mm) No
HCRS-1C 20,000 lb-ft  8,000 lbs (3650 kg)  20 in (508 mm) 120 in (3.04 m)
6.3 in (162 mm) Yes
HCRS-4P 50,000 lb-ft  12,000 lbs
  (5,444 kg)
 26 in (660 mm) 120 in (3.04 m)
(Unlimited Length)
9.0 in (230 mm)
(custom available)
Yes
HCRS-4P-70K 70,000 lb-ft   12,000 lbs
  (5,444 kg)
 26 in (660 mm)  120 in (3.04 m)
(Unlimited Length)
 11.6 in (295 mm)
(custom available)
 Yes
