Portable Track Pin Press

Make Field Repairs Safer, Faster, and More Efficient with WTC Machinery Portable Pin Presses

When equipment goes down, time is money. That’s why WTC Machinery’s Portable Pin Presses are designed to make field and shop repairs safer, faster, and more efficient. Compact and powerful, these presses are ideal for on-site repairs or for shop use when you need to replace a broken pin without removing the entire track. Our presses are designed to help operators get machines back to work quickly.

With simple setup, repair times are shortened, allowing operators to perform service calls efficiently. WTC’s portable pin presses reduce downtime, boost productivity, and minimize operator strain. Whether mounted on a service truck or used in your shop, these presses deliver the strength and reliability needed for demanding track service jobs. Proudly manufactured right here in Ixonia, Wi, our presses are of the same quality you’ve come to expect from WTC Machinery and are built to withstand the test of time. Every press is built to the same high standards that have made WTC Machinery an industry leader.

Buying direct from the manufacturer means you get fast response times, expert support, and immediate access to replacement parts and tooling. WTC keeps these presses and tooling in stock, so if you’re in a bind, we can get you back up and running quickly.

Portable Track Pin Press Models

A track pin press is a game-changer for any track service setup, improving operator safety and reducing repair time. Whatever your application, WTC Machinery has the portable pin press to make your repair operations safer, smarter, and more efficient—right where you need it most. Experience the best in durability, reliability, and efficiency with WTC Machinery’s portable pin presses.



PRESS OPTIONS

Portable Track Presses

Pressing Force

Works Up To

Pump options

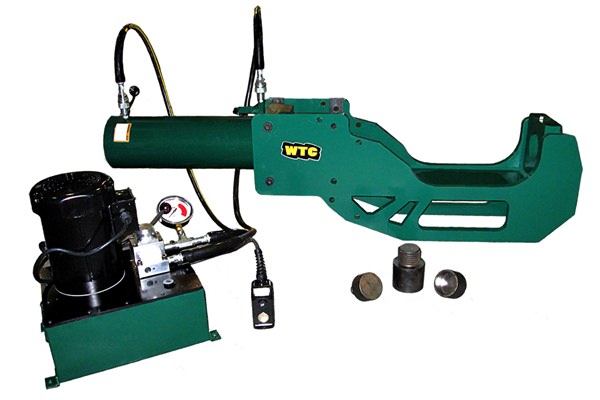

FP100 (C-Frame)

100 Ton

Caterpillar D9, Komatsu PC600, D155 & smaller models - Pin diameters from .76" (19mm) up to 2.56" (65,1mm).

- Electric
-Air
-Hand

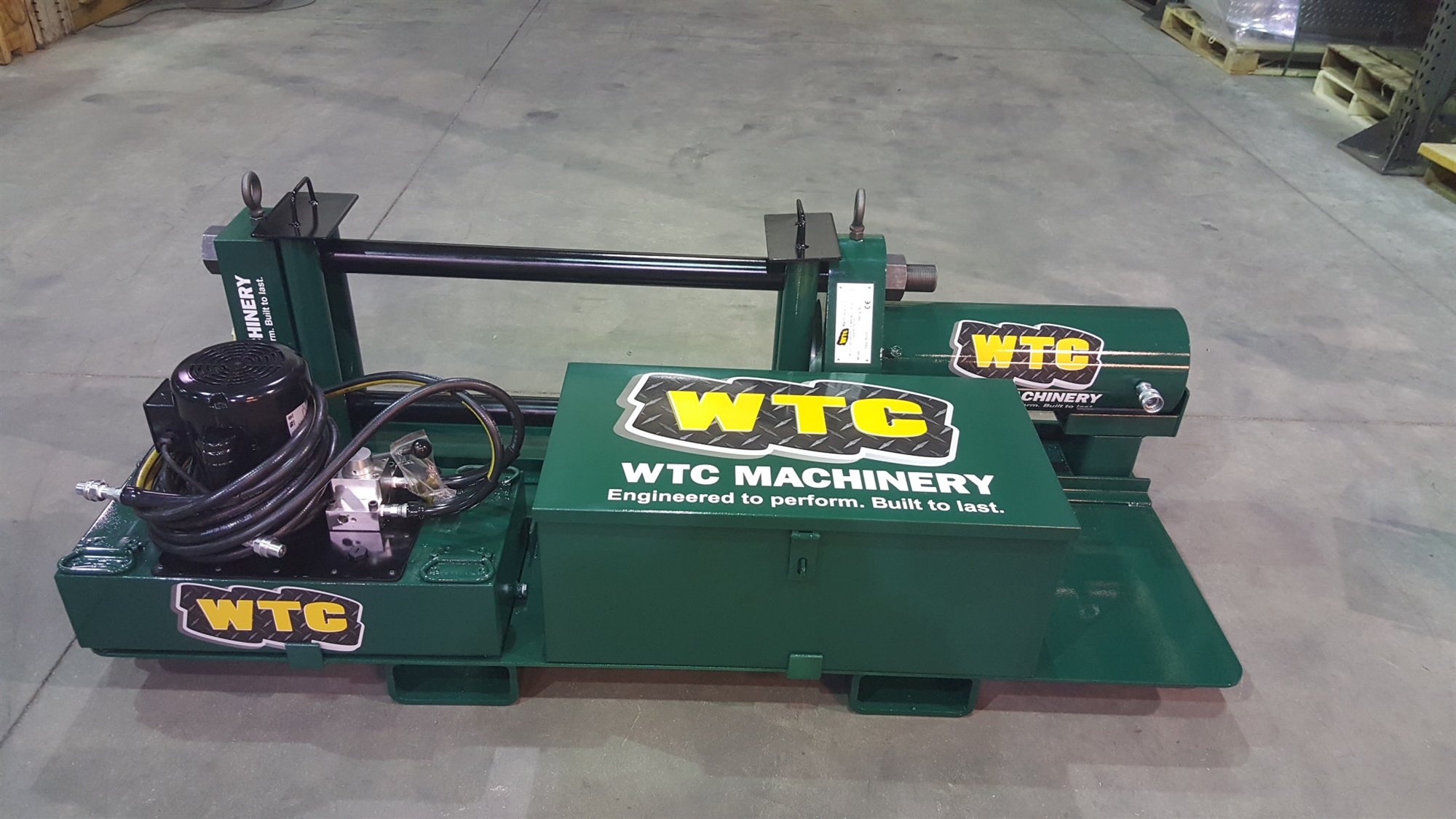

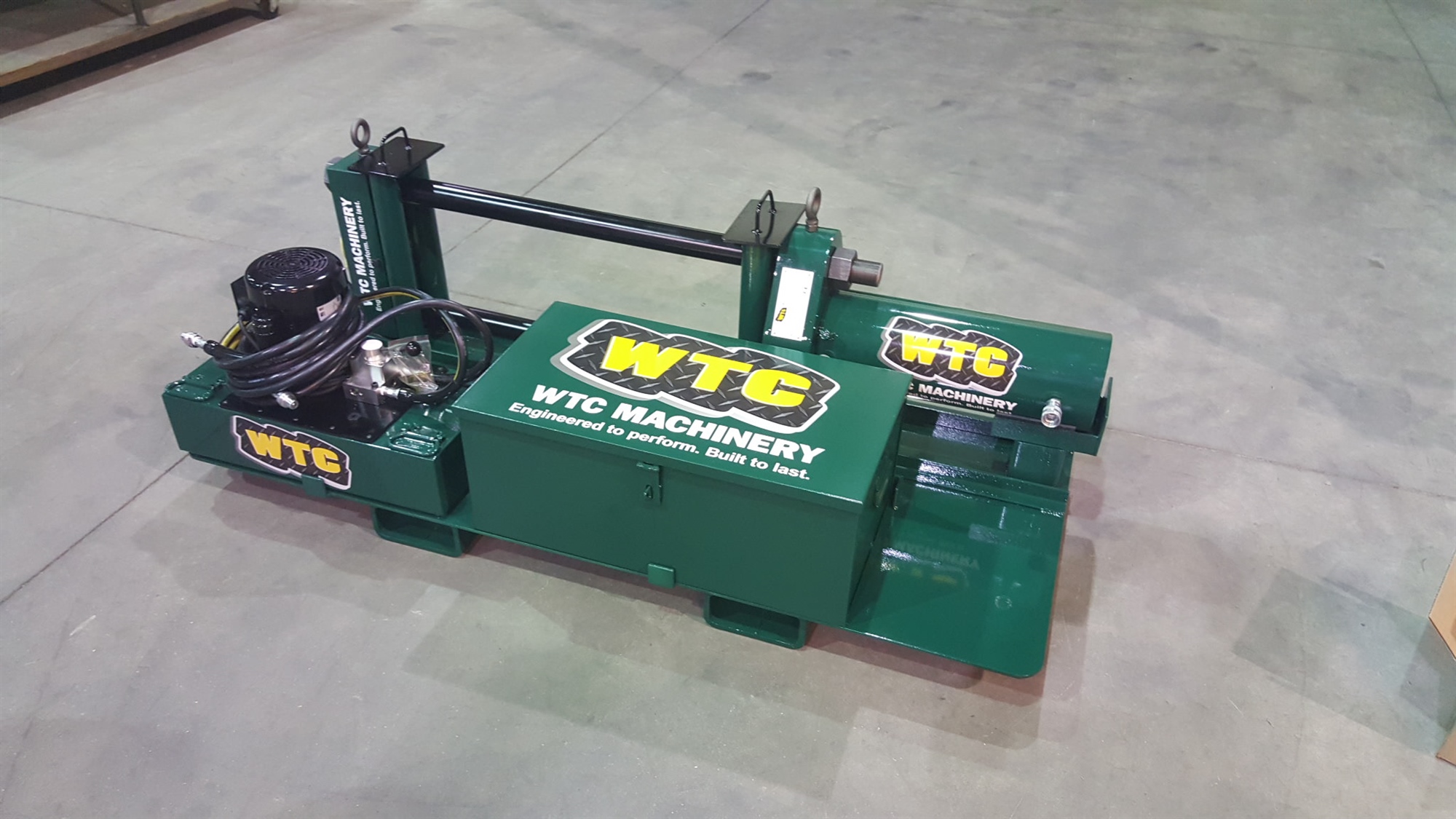

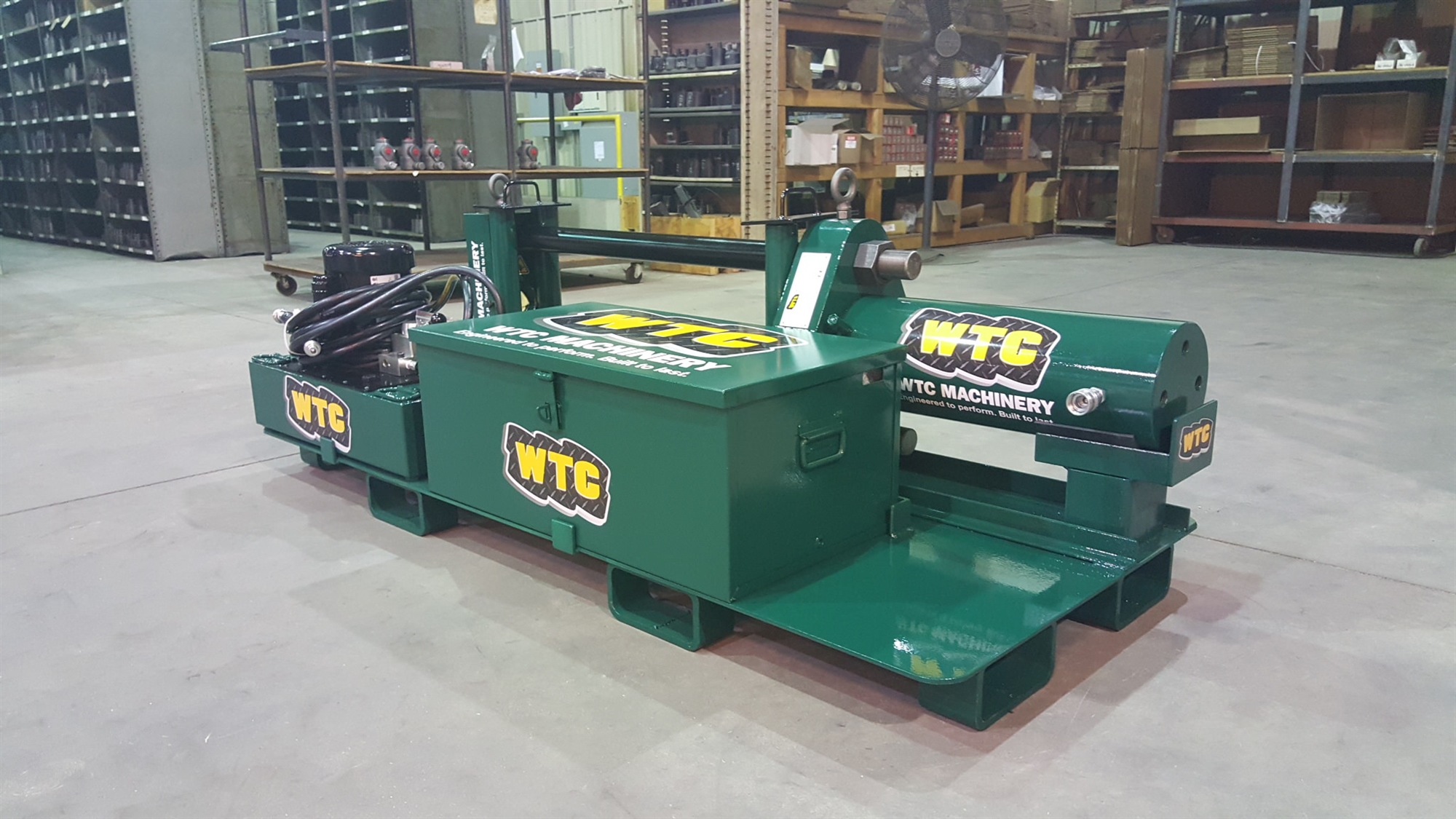

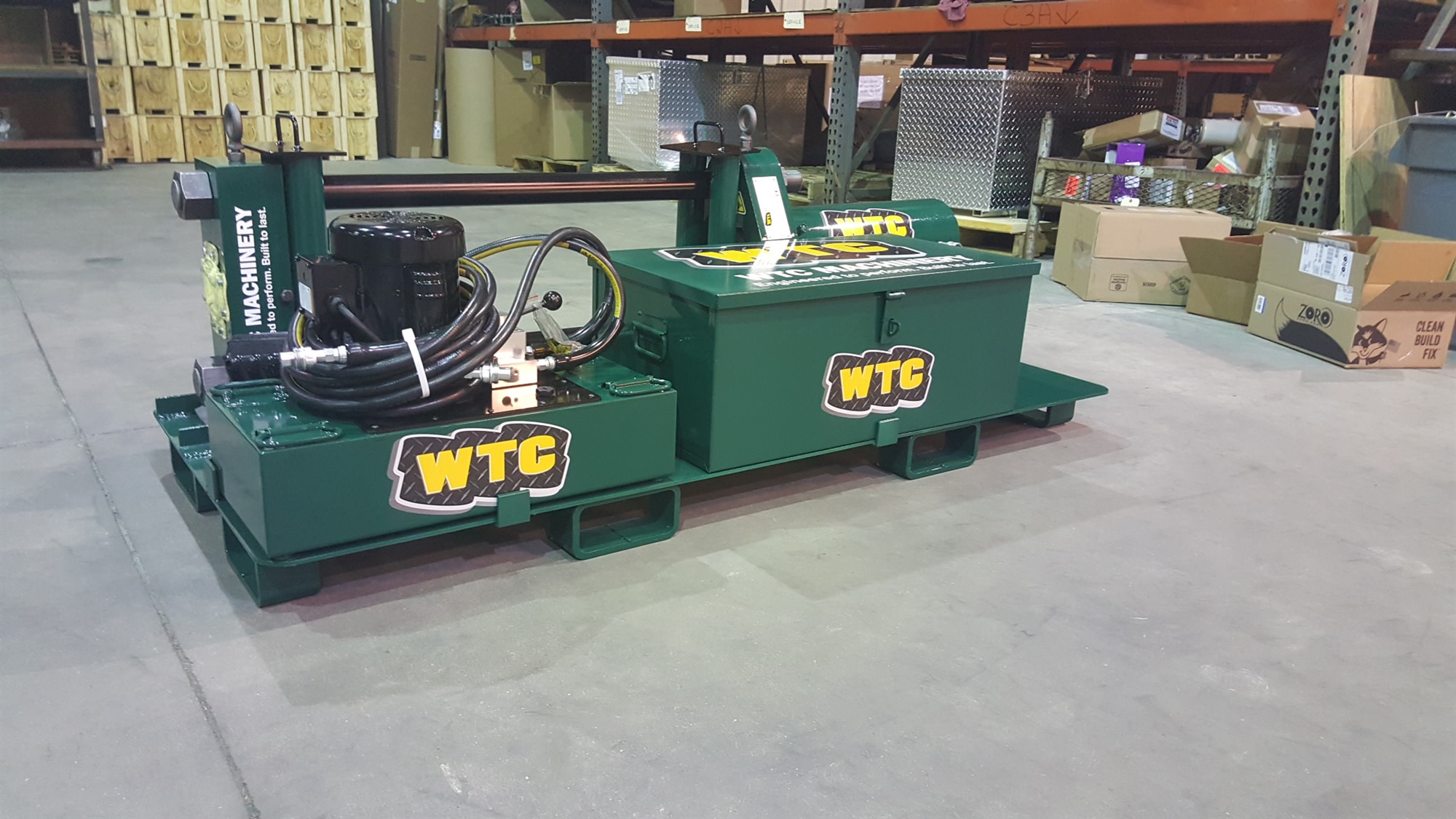

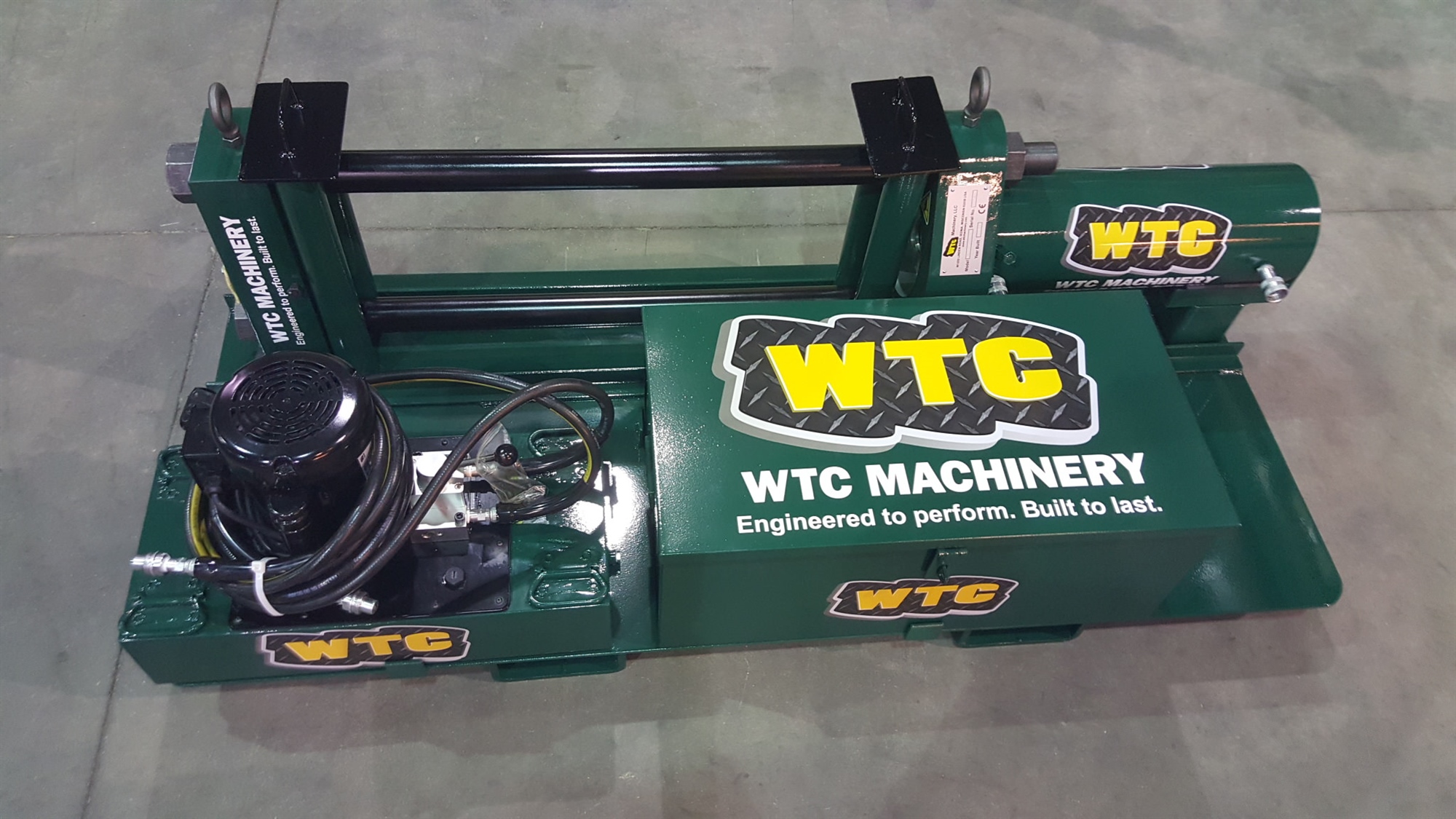

MPP150 (Tie Rod)

150 Ton

Caterpillar D10, Komatsu PC800, D275 & smaller models - Pin Diameters from .87" (22,0mm) up to 2.75" (69,8mm)

-Electric
-Air
-Hand
FP150 (C-Frame) 150 Ton Caterpillar D10, Komatsu PC800, D275 & smaller models - Pin Diameters from .87" (22,0mm) up to 2.75" (69,8mm)

-Electric
-Air

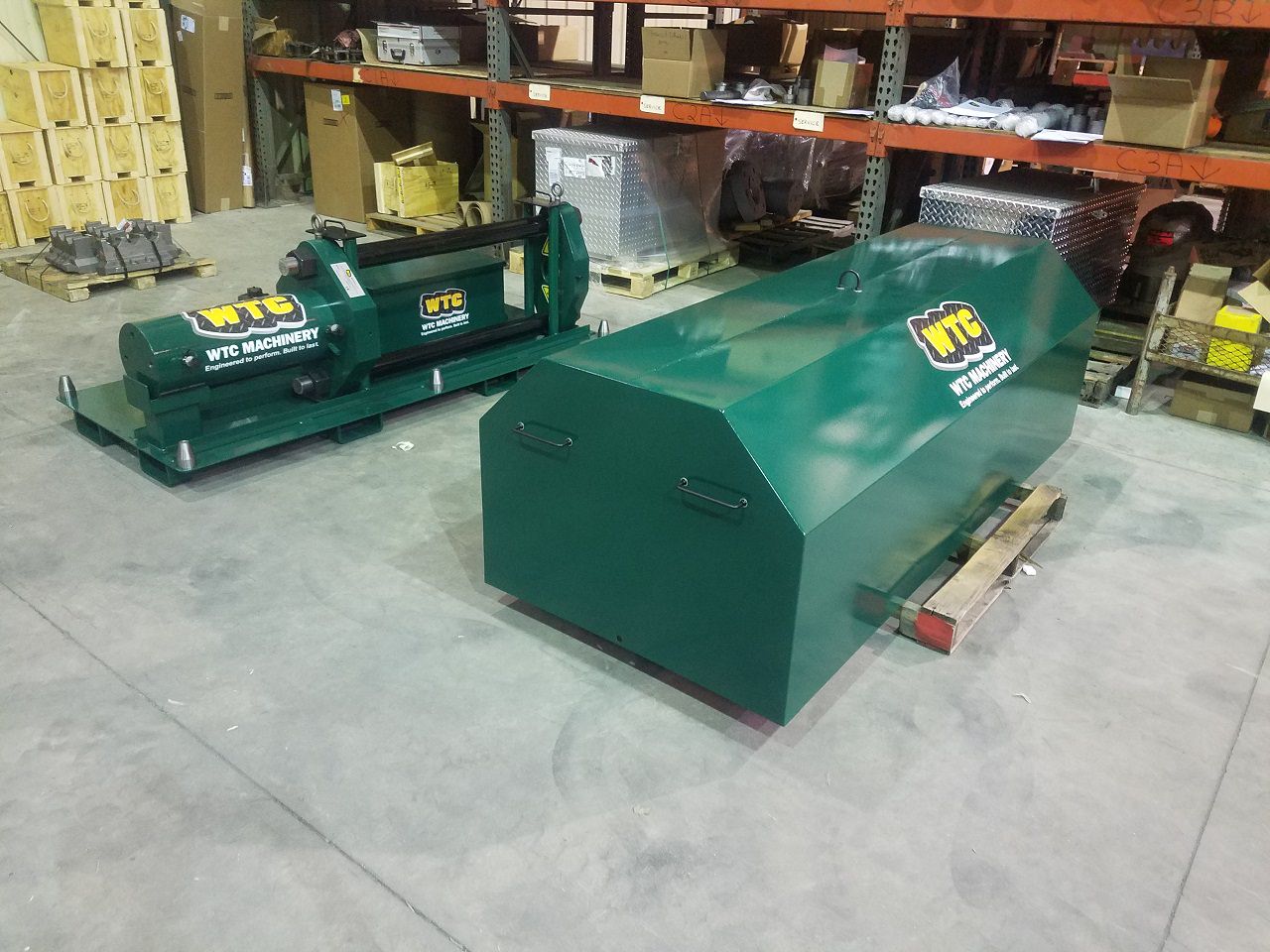

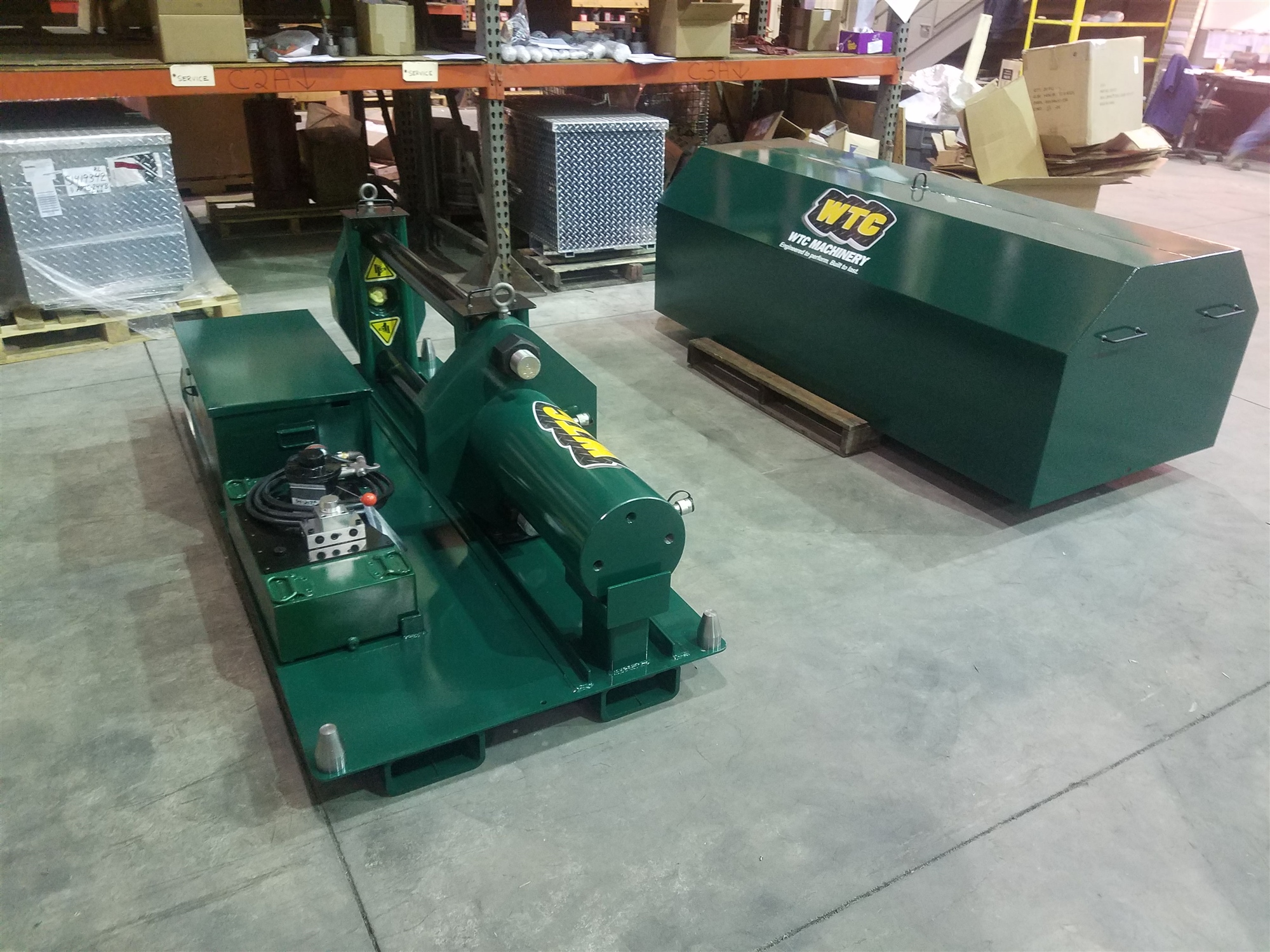

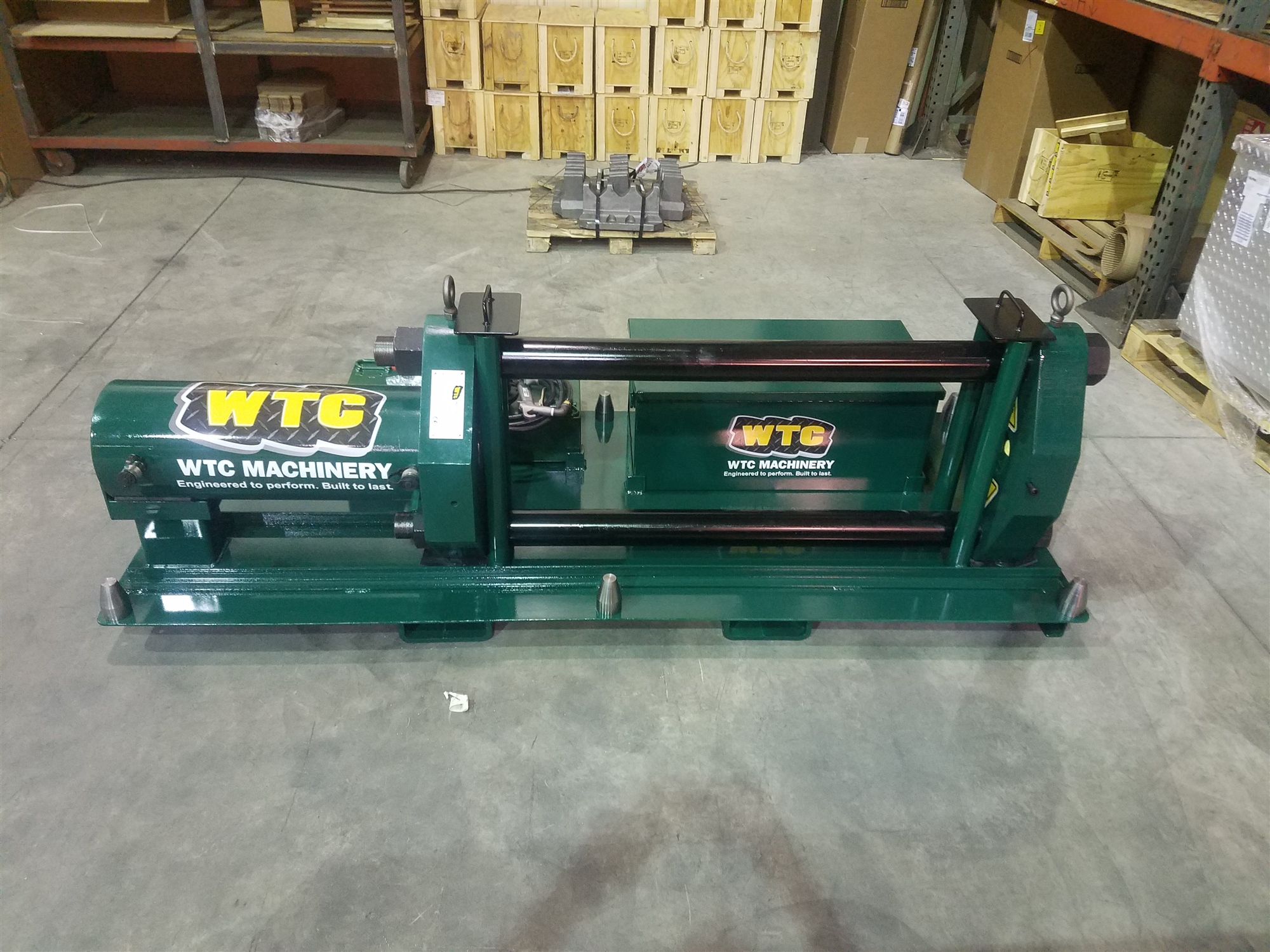

MPP250 (Tie Rod)

250 Ton

Caterpillar D11, Komatsu 475 & smaller models - Pin Diameters ranging from .87" (22,0mm) up to 3" (76,2mm)

-Electric
-Air

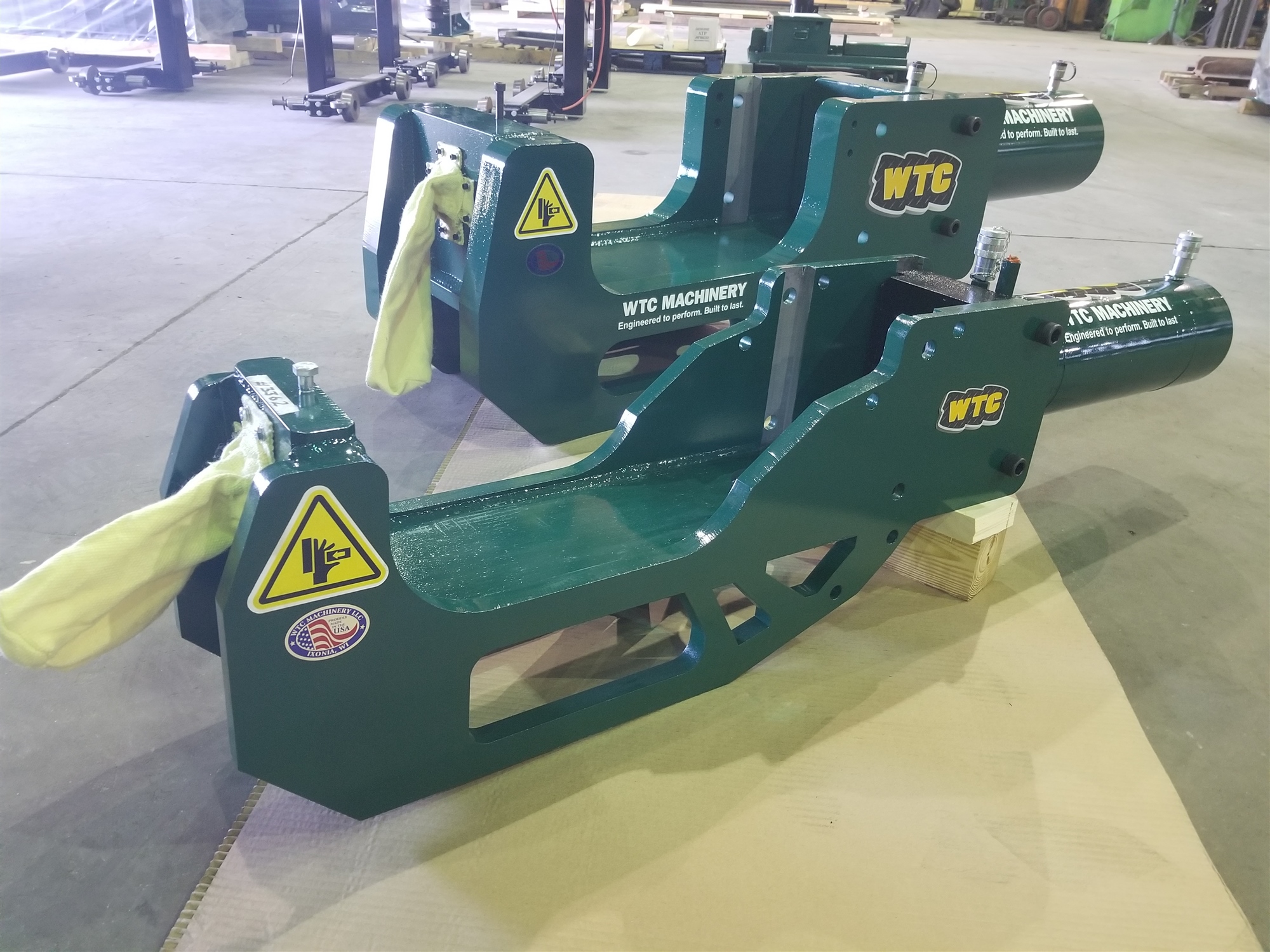

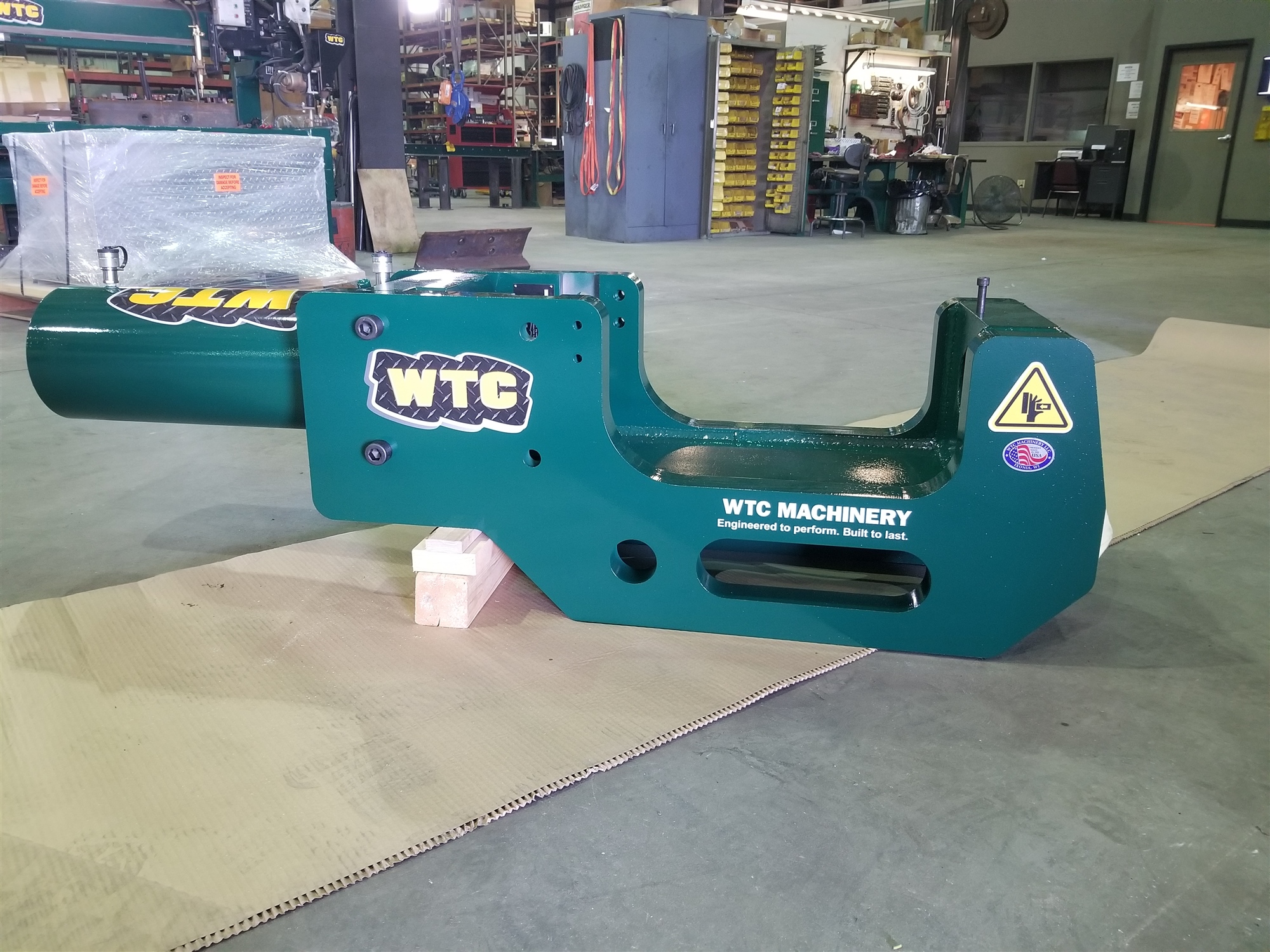

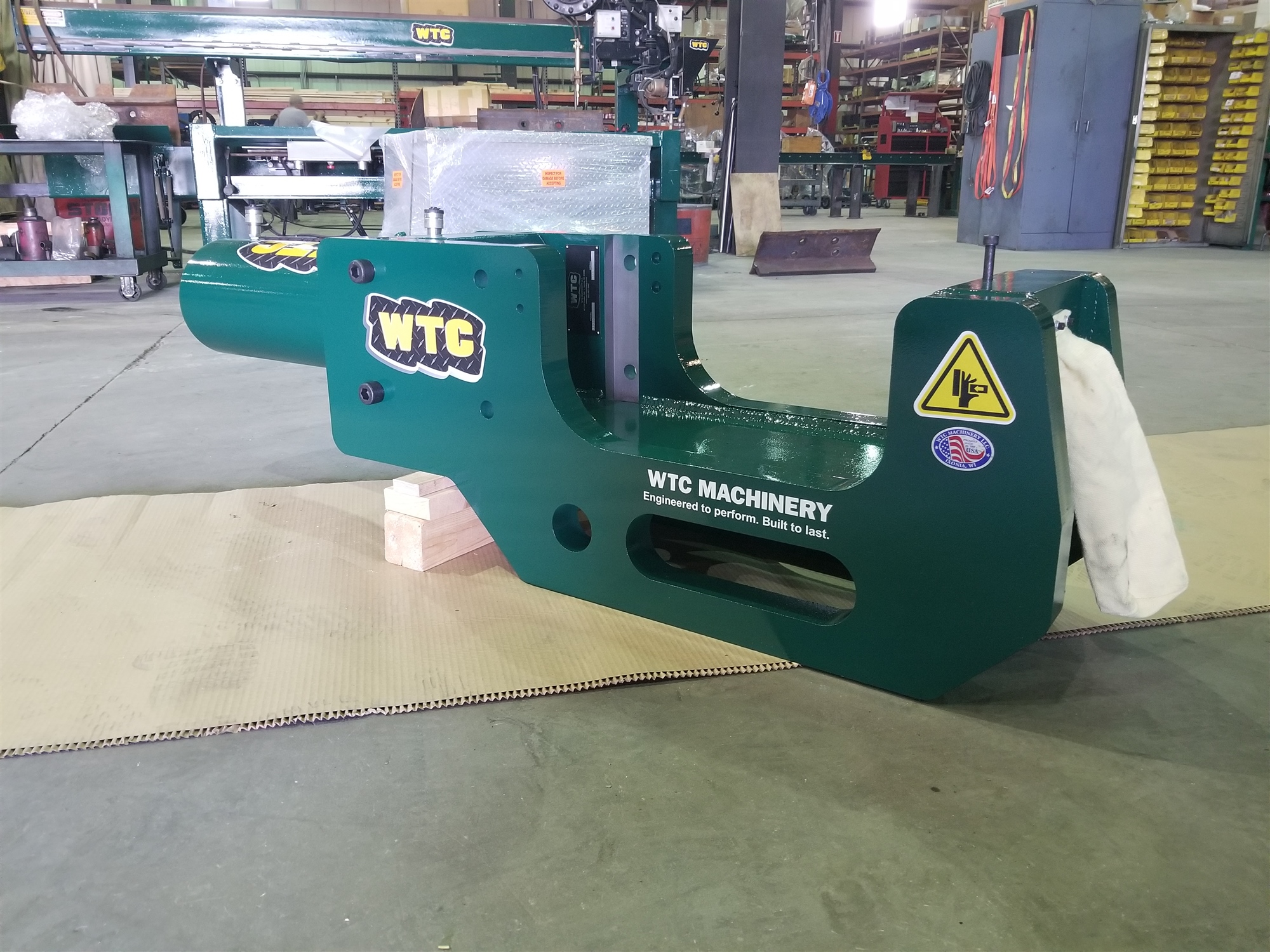

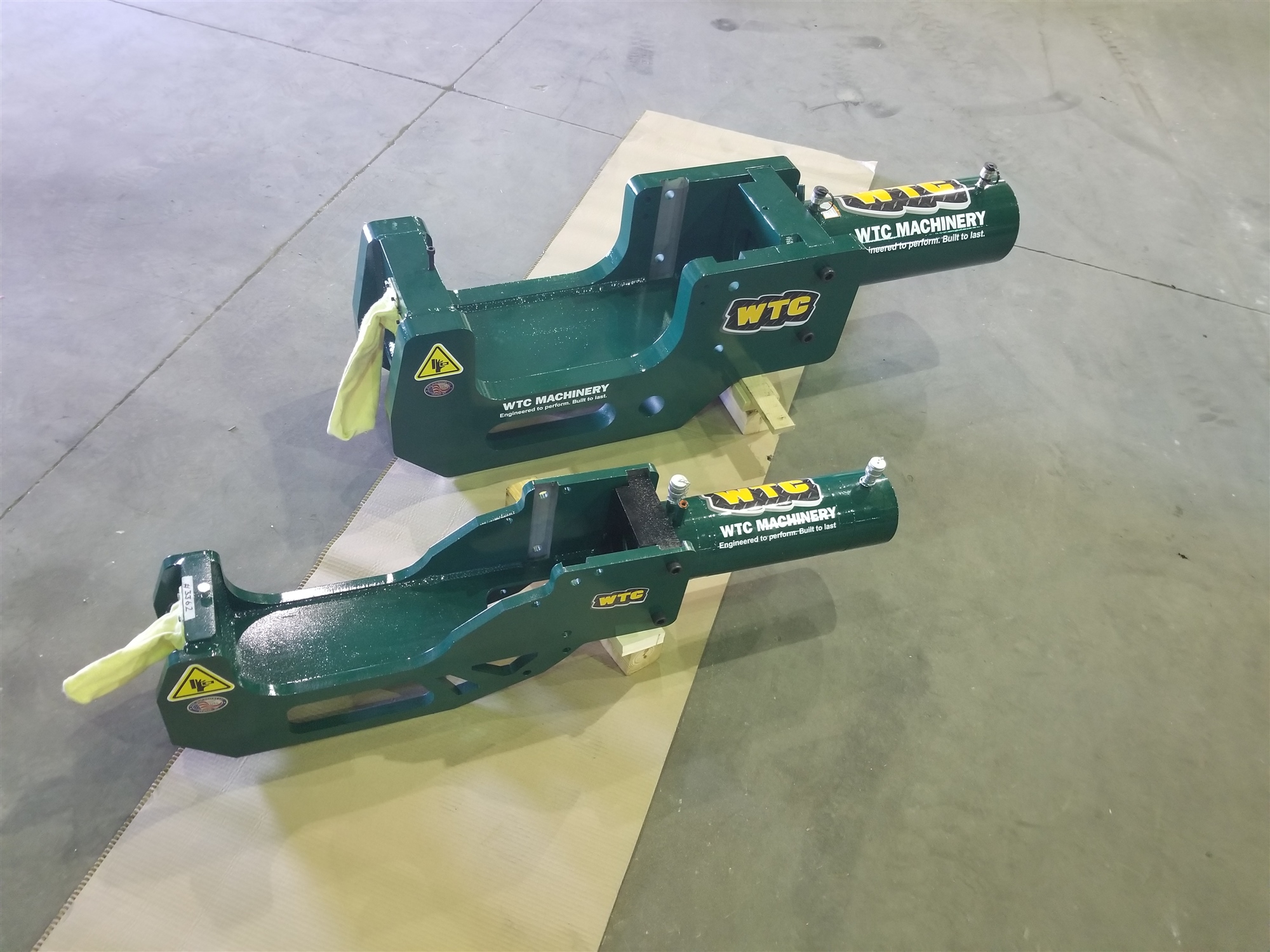

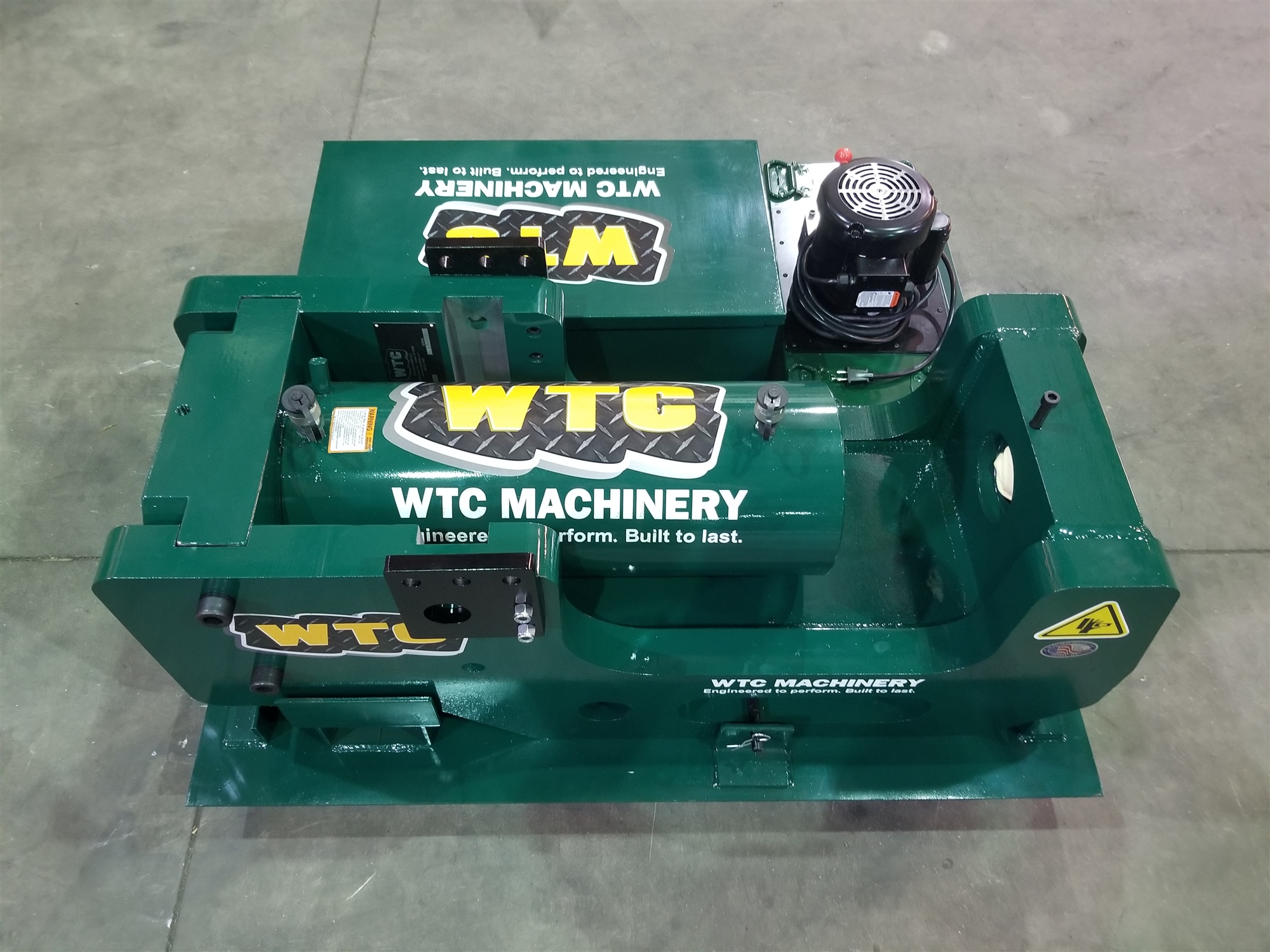

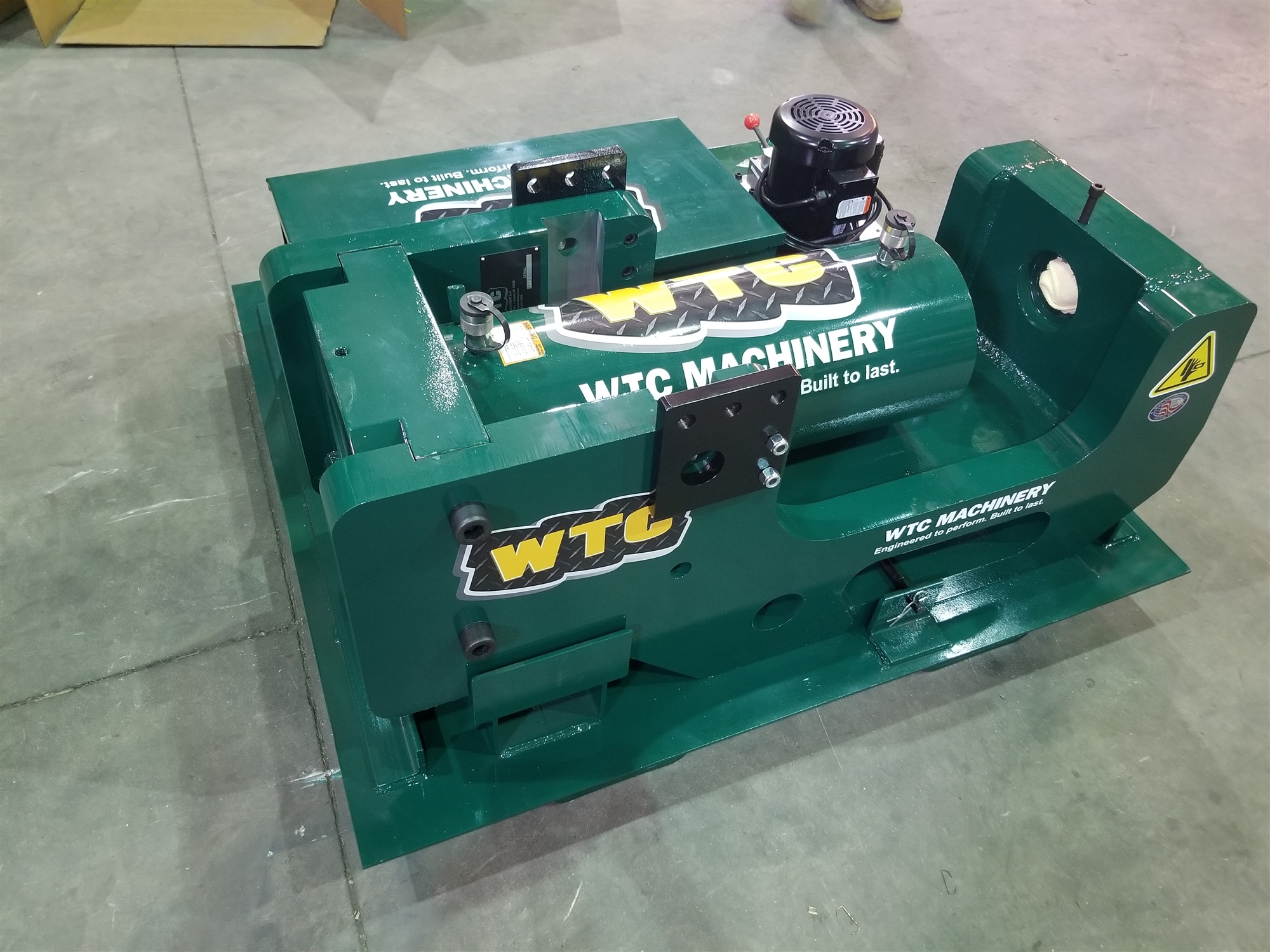

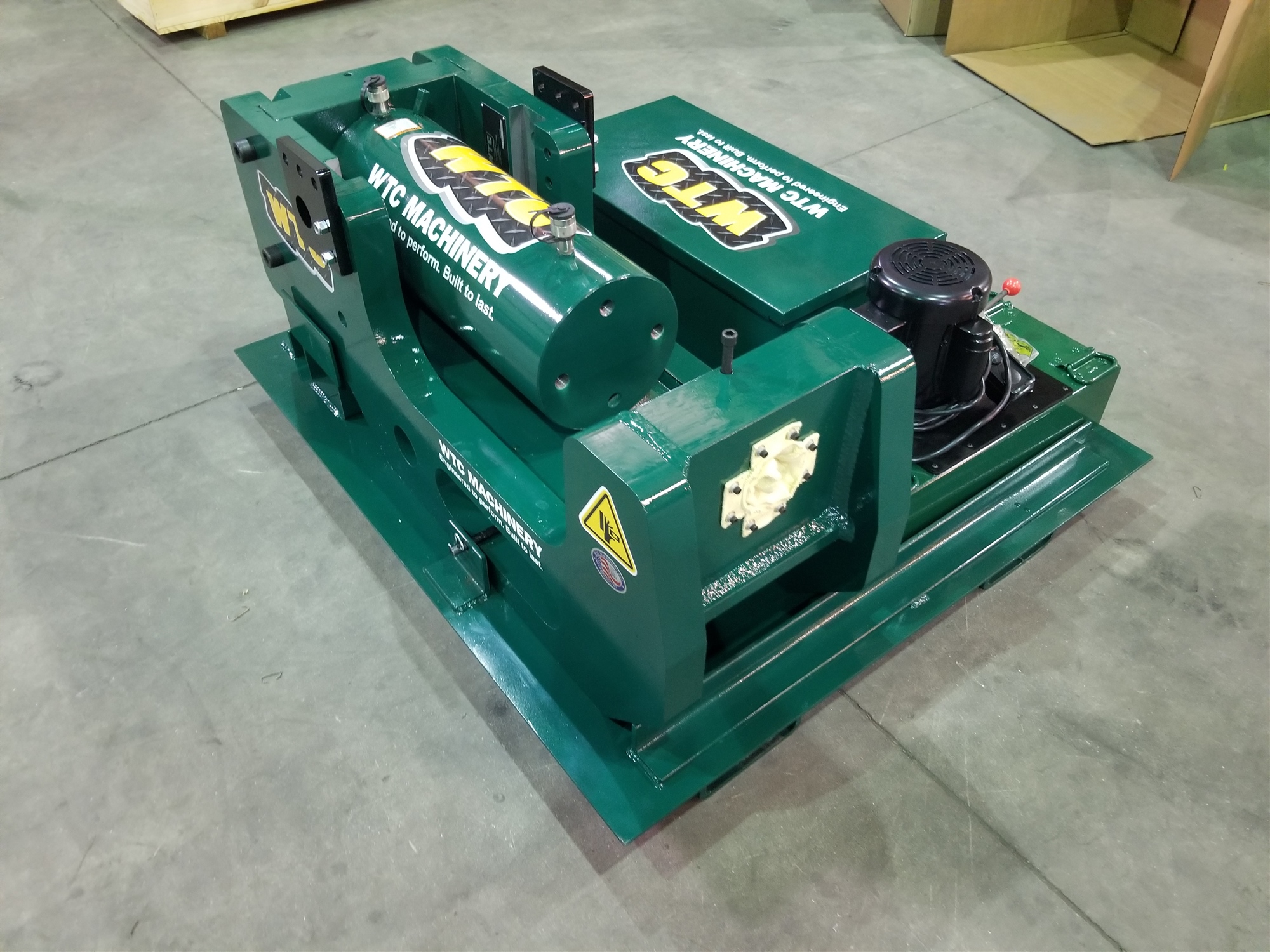

 FP250 (C-Frame)

250 Ton

Caterpillar D11, Komatsu 475 & smaller models - Pin Diameters ranging from .87" (22,0mm) up to 3" (76,2mm)



-Electric
-Air

Hands Free Pin Pusher

N/A

Pin Diameters ranging from .75" (19,05mm) up to 2.25" (57.15mm)

N/A

Need assistance determining which press is the right fit, or exploring a custom setup tailored to your application?  Call us directly at +1 262-567-3993 or by email at [email protected] . Our knowledgeable team at WTC Machinery LLC is ready to help you find the best solution to fit your needs.

Caterpillar D10, Komatsu PC800, D275 & smaller models - Pin Diameters from .87" (22,0mm) up to 2.75" (69,8mm)
FAQ
What is a portable track pin press and what does it do?
A portable track pin press is a hydraulic tool used to safely remove or install track pins, bushings, and links on tracked heavy equipment (e.g. excavators, bulldozers, crawlers). It uses hydraulic pressure — instead of hammering or torching — to push pins in or out, minimizing risk of injury and potential damage to the track or undercarriage.
Using a pin press reduces operator strain, eliminates the hazards associated with manual hammering or torch-based pin removal, and improves precision — reducing the chance of damaging track links or other components. It also speeds up repair time, especially in field or shop environments.
Depending on the model, WTC portable pin presses can service a wide range of tracked equipment. For example:

● The 100-ton press (FP100) handles smaller excavators/bulldozers (e.g. up to CAT D9, Komatsu PC600).
● The 150-ton and 250-ton presses (e.g. MPP150, FP150, MPP250, FP250) are designed for larger machines (up to CAT D10, D11, Komatsu PC800/PC1250, etc.).
For example, the FP100 press can work with pin diameters from about 0.76" (19 mm) up to 2.56" (65.1 mm).

For heavier-duty presses (150–250 ton), the pin diameter capacity extends up to about 3.00" (76.2 mm).
Yes — they’re designed for both. Their portability means operators can perform on-site repairs without transporting heavy equipment back to a shop. This significantly reduces downtime.
WTC offers multiple pump options to match the user’s environment: electric pumps, air-powered pumps, and even hand pumps — depending on the model.
WTC presses come with a full range of tooling appropriate for different pin sizes and track-style chains. Optional accessories include a pressure gauge, engineered lifting sling, and a safety blanket (to protect against debris) for added safety during operation.
Because the press allows pin replacement or track repairs right in the field (or on the jobsite), you avoid transporting heavy machinery back to the shop. Repairs are faster, safer, and more efficient — reducing labor hours, limiting equipment off-time, and lowering the risk of undercarriage damage.
Yes — when used properly. Compared to traditional methods like hammering or heat, hydraulic pin presses dramatically reduce safety risks. That said, users should always follow the manufacturer’s instructions, inspect the press before use, and avoid shortcuts.
Key factors include the size and tonnage requirements of your equipment (what machine you’re working on), the pin diameter you need to handle, whether you’ll use it in a workshop or the field, and your available power/pump option (electric, air, hand). Choosing a press with sufficient capacity avoids damaging the press or machine.
WTC portable pin presses can service a wide range of tracked machinery, including excavators, dozers, forestry machines, mining equipment, and other heavy undercarriage systems. Different models offer capacity ranges from small- to large-frame machines.
Selection depends on your required tonnage, pin diameter, and chain size. Smaller excavators typically use 100-ton presses, while larger mining and construction machines may require 150- to 250-ton capacity. If you’re unsure, WTC can help match the correct model.
Depending on the model, presses can be used with electric, pneumatic (air), or hand-operated pumps. This flexibility allows operators to work in remote locations without fixed electrical access.
Yes. WTC portable pin presses come standard with a full set of press tooling suitable for the machine sizes the press is designed to service. Optional accessories — such as pressure gauges, safety blankets, and lifting slings — can be added as needed.
Yes. WTC’s portable pin presses are designed for both tasks. With the correct tooling setup, operators can remove worn pins and reinstall new pins or bushings using the same press.
Regular inspection of hydraulic hoses, fittings, and tooling ensures reliable operation. Keeping the press clean, storing tooling properly, and checking pump fluid levels help extend service life and maintain full tonnage output.
Time varies by machine size and track condition, but using a hydraulic press dramatically shortens the process. What once took hours of manual hammering can often be completed in minutes with a properly set up portable pin press.
Yes. WTC carries replacement components, pump upgrades, additional specialty tools, and safety accessories to ensure your press remains fully operational for years of service.
