CR-10 Roller & Idler Rebuilder

Request a Quote Today

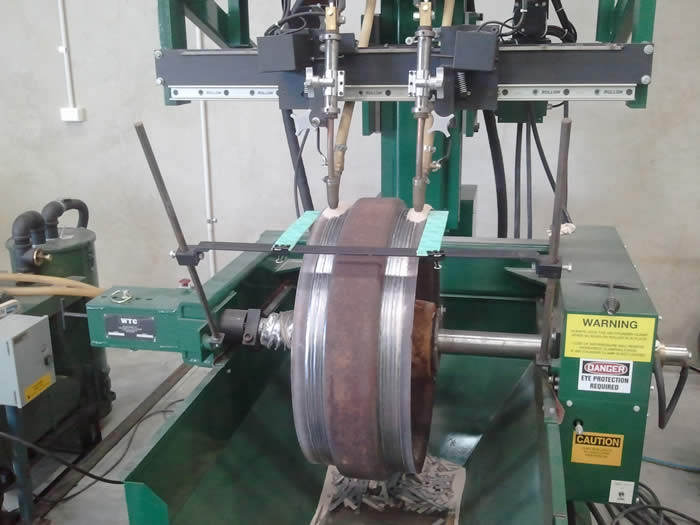

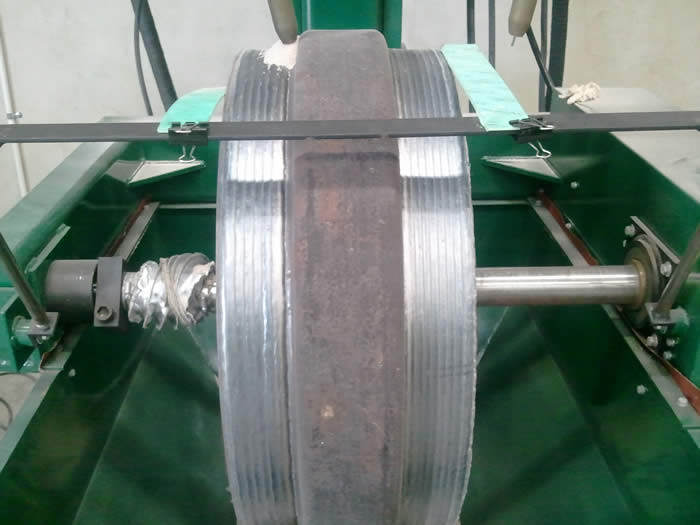

WTC Machinery's CR-10 Roller Idler Rebuilder is the modern, efficient way to rebuild worn idlers and rollers. The two high amperage weld heads come complete with power sources, and assure high deposition rates with both circumferential (stringer) and oscillate (cross) welding methods.

The standard power yoke tilt handles flange welding and the simple, straight-forward controls guarantee easy operator training. The high capacity wire holders, flux hopper and included flux recovery system provide uninterrupted welding for the biggest jobs.

The optional Jib Crane, "J" Hooks and Lifting Tongs allow the CR-10 to work without forklifts or building cranes, and the optional Water System avoids bore shrinkage when welding assembled rollers.

Contact WTC Machinery to find out more about our line of Flux-Cored Welding Wire equipment.

Why is the dual head CR10 so efficient?

  • Efficiency
    • Two heads are better than one.  Gets the job done in half the time.
  • Head Control
    • With different head control options the service style is up to you
  • Automatic Flux Recovery
  • 45 Degree tilt for inner welding

SPECIFICATIONS

MODEL SPECIFICATIONS

Maximum Workpiece Weight: 2000 lbs (910 kg)
Maximum Workpiece Diameter: 52 inches (1320 mm)
Maximum Workpiece Width: 26 inches (660 mm)
Welding Torches: 2 x 600 Amps
Wire Barrel Size: Weight - 2 x 1,200 lb (540 kg)
Outside Diameter: 24" (628 mm)
  • Also works with 120 lb wire spools

ELECTRICAL SPECIFICATIONS

Electrical Supply: 77 kW
Standard Voltages: Three Phase
  208V / 60 Hz
  220V / 50 Hz
  230V / 60 Hz
  385V / 50 Hz
  415V / 50 Hz
  460V / 60 Hz
